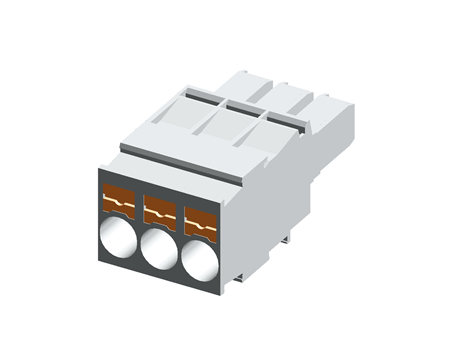

PP-H 6/ 3

Plug

Manufacturer	Phoenix Contact
Manufacturer product designation	Plug
product article number of manufacturer	3061583
GTIN	4046356650229
width	24.6
type of enveloping body	enveloping body cuboid
height	21
depth	49.325

number of the executions of the housing parts	0
mounting design	plug insert
net weight	0.02266
max. connectable conductor cross-section multiple wire	6
Max. line cross section, rigid	10
min. connectable conductor cross-section multiple wire	0.5
Min. line cross section, rigid	0.5
Connection type (1)	Push-in connection

CAD models

Request for quotation

Product selection

Index	Selector	product article number of manufacturer	Manufacturer product designation	GTIN	width	type of enveloping body	height	depth	number of the executions of the housing parts	mounting design	net weight	max. connectable conductor cross-section multiple wire	Max. line cross section, rigid	min. connectable conductor cross-section multiple wire	Min. line cross section, rigid	Connection type (1)
1	1	3061583	Plug	4046356650229	24.6	enveloping body cuboid	21	49.325	0	plug insert	0.02266	6	10	0.5	0.5	Push-in connection

Product Description

Plug, nom. voltage: 1000 V, nominal current: 41 A, number of connections: 3, number of positions: 3, connection method: Push-in connection, 1 level, Rated cross section: 6 mm², cross section: 0.5 mm² - 10 mm², color: gray
