PLC-OPT- 60DC/ 48DC/100

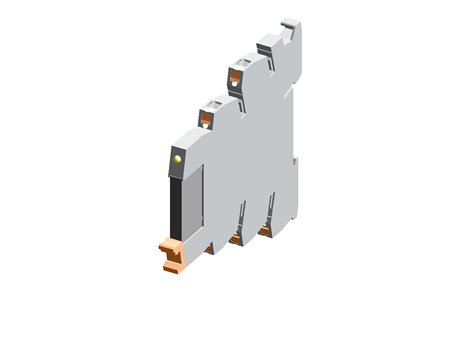

Solid-state relay module

Manufacturer	PHOENIX CONTACT
Manufacturer product designation	Solid-state relay module
Internal article number	2900354
GTIN (EAN) code	4046356508643
Power loss, static, current-independent [Pls]	0.3
Application standards	IEC 60947-5-1
certificate/approval	DNV GL
max. input voltage	72

min. primary voltage range	48
max. output voltage	48
min. output voltage	3
LED display present	True
Rated operating current Ie	0.1
Input voltage, type	DC
Output voltage type	DC
Design of digital output	Electronic

CAD models

Request for quotation

Product selection

Index	Selector	Internal article number	Manufacturer product designation	GTIN (EAN) code	Power loss, static, current-independent [Pls]	Application standards	certificate/approval	max. input voltage	min. primary voltage range	max. output voltage	min. output voltage	LED display present	Rated operating current Ie	Input voltage, type	Output voltage type	Design of digital output
1	1	2900354	Solid-state relay module	4046356508643	0.3	IEC 60947-5-1	DNV GL	72	48	48	3	True	0.1	DC	DC	Electronic

Product Description

PLC-INTERFACE, consisting of PLC-BPT.../21 basic terminal block with push-in connection and plug-in miniature solid-state relay, for mounting on DIN rail NS 35/7,5, 1 N/O contact, input: 60 V DC, output: 3 - 48 V DC/100 mA
