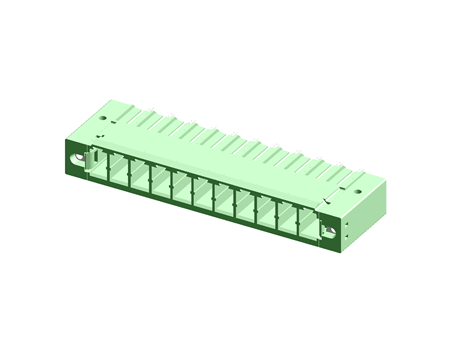

PCV 5/11-GF-7,62

PCB header

Manufacturer	Phoenix Contact
Manufacturer product designation	PCB header
product article number of manufacturer	1720990
GTIN	4046356114110
width	99.92
height	34.25
depth	14.29
Application standards	IEC 61984

flammability rating of the insulating material (based on UL 94)	V0
Assembly type	Wave soldering
material of insulation	PA
color of housing	green
Assembly	Threaded joint
Pole number	11
rated current	32
Type of interlock	Threaded joint

CAD models

Request for quotation

Product selection

Index	Selector	product article number of manufacturer	Manufacturer product designation	GTIN	width	height	depth	Application standards	flammability rating of the insulating material (based on UL 94)	Assembly type	material of insulation	color of housing	Assembly	Pole number	rated current	Type of interlock
1	1	1720990	PCB header	4046356114110	99.92	34.25	14.29	IEC 61984	V0	Wave soldering	PA	green	Threaded joint	11	32	Threaded joint

Product Description

PCB headers, nominal cross section: 6 mm², color: green, nominal current: 32 A, rated voltage (III/2): 630 V, contact surface: Sn, contact connection type: Pin, number of potentials: 11, number of rows: 1, number of positions: 11, number of connections: 11, product range: PCV 5/..-GF, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 5 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 5, Pin connector pattern alignment: Standard, locking: Screw locking mechanism, mounting method: Threaded flange, type of packaging: packed in cardboard
