M23-19P1N128004S

Cable connector

Manufacturer	Phoenix Contact
Manufacturer product designation	Cable connector
product article number of manufacturer	1342731
GTIN	4063151652760
number of the executions of the housing parts	0
mounting design	plug insert
net weight	0.10202
certificate/approval	cULus Recognized

Application standards	not available
Pole number	19
PE connection present	False
Type of interlock	Screw locking mechanism
Coding (head 1)	N
Design of housing	even
Number of control contacts	16
Number of power contacts	3

CAD models

Request for quotation

Product selection

Index	Selector	product article number of manufacturer	Manufacturer product designation	GTIN	number of the executions of the housing parts	mounting design	net weight	certificate/approval	Application standards	Pole number	PE connection present	Type of interlock	Coding (head 1)	Design of housing	Number of control contacts	Number of power contacts
1	1	1342731	Cable connector	4063151652760	0	plug insert	0.10202	cULus Recognized	not available	19	False	Screw locking mechanism	N	even	16	3

Product Description

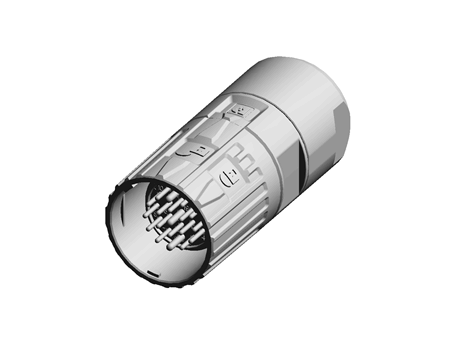

M23, Cable connector, series: M23 PRO, straight, shielded: yes, ONECLICK fast locking system, No. of pos.: 16+3, Direction of rotation: Standard, contact connection type: Pin, Solder connection, cable diameter range: 9 mm ... 15 mm, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)
