M23-17P1N8A8003

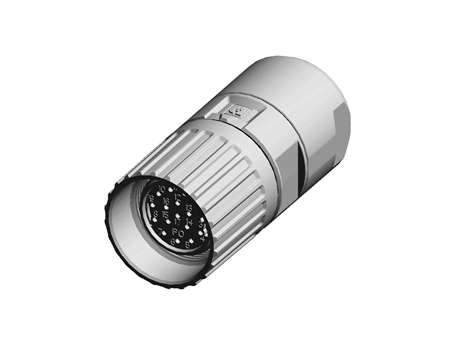

Cable connector

Manufacturer	PHOENIX CONTACT
Manufacturer product designation	Cable connector
Internal article number	1629202
GTIN (EAN) code	4055626618357
rated voltage	125
Application standards	not available
PE connection present	False
certificate/approval	cUL Recognized, UL Recognized

shielded	False
Status display present	False
Areas of application for signal and data transmission	None
Degree of protection (IP), mounted	IP66
rated current	8
Pole number	17
Material of the contact coat	without
Coding (head 1)	N

CAD models

Request for quotation

Product selection

Index	Selector	Internal article number	Manufacturer product designation	GTIN (EAN) code	rated voltage	Application standards	PE connection present	certificate/approval	shielded	Status display present	Areas of application for signal and data transmission	Degree of protection (IP), mounted	rated current	Pole number	Material of the contact coat	Coding (head 1)
1	1	1629202	Cable connector	4055626618357	125	not available	False	cUL Recognized, UL Recognized	False	False	None	IP66	8	17	without	N

Product Description

M23, Cable connector, application: Signal, series: M23 PRO, straight, shielded: yes, Screw locking mechanism, No. of pos.: 17, Direction of rotation: Standard, contact connection type: Pin, Crimp connection, cable diameter range: 6 mm ... 10 mm, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)
