HC-M-03-CT-F

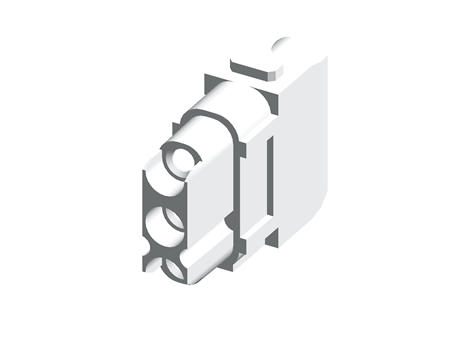

Contact insert module

Manufacturer	PHOENIX CONTACT
Manufacturer product designation	Contact insert module
Internal article number	1414359
GTIN (EAN) code	4055626025025
width	14.6
height	34.1
rated voltage	500
depth	44.7

Application standards	not available
flammability rating of the insulating material (based on UL 94)	V0
Max. line cross section, flexible	6
Min. line cross section, flexible	1.5
max. connectable conductor cross-section multiple wire	6
min. connectable conductor cross-section multiple wire	1.5
PE connection present	False
certificate/approval	CSA, UL Recognized, DNV

CAD models

Request for quotation

Product selection

Index	Selector	Internal article number	Manufacturer product designation	GTIN (EAN) code	width	height	rated voltage	depth	Application standards	flammability rating of the insulating material (based on UL 94)	Max. line cross section, flexible	Min. line cross section, flexible	max. connectable conductor cross-section multiple wire	min. connectable conductor cross-section multiple wire	PE connection present	certificate/approval
1	1	1414359	Contact insert module	4055626025025	14.6	34.1	500	44.7	not available	V0	6	1.5	6	1.5	False	CSA, UL Recognized, DNV

Product Description

Contact insert module, number of positions: 3, power contacts: 3, control contacts: 0, Socket, Crimp connection, 500 V, 40 A, 1.5 mm² ... 6 mm², application: Power
