By Phoenix Contact

HC-ADV-B10-HHWH-1SGM32-PL

Housing



Manufacturer	PHOENIX CONTACT
Manufacturer product designation	Housing
Internal article number	1404230
GTIN (EAN) code	4046356682015
width	57
height	95
depth	105
Application standards	not available

flammability rating of the insulating material (based on UL 94)	not relevant
certificate/approval	cUL Recognized, UL Recognized, DNV
Degree of protection (IP), mounted	IP66
Type of interlock	Screw
number of cable inlets	1
color of housing	black
material of housing	Polyamide (PA)
Min. operating temperature	-40

CAD models

Request for quotation

Product selection

Index	Selector	Internal article number	Manufacturer product designation	GTIN (EAN) code	width	height	depth	Application standards	flammability rating of the insulating material (based on UL 94)	certificate/approval	Degree of protection (IP), mounted	Type of interlock	number of cable inlets	color of housing	material of housing	Min. operating temperature
1	1	1404230	Housing	4046356682015	57	95	105	not available	not relevant	cUL Recognized, UL Recognized, DNV	IP66	Screw	1	black	Polyamide (PA)	-40

Product Description

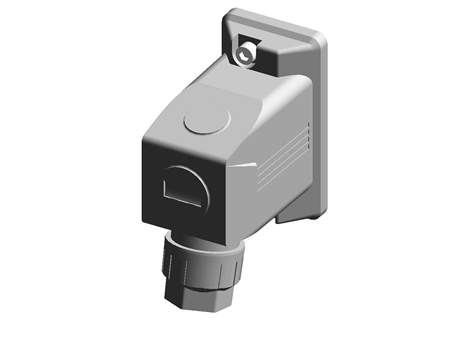

Sleeve housing B10, with screw locking, material: PA, cable outlets: 1, lateral, M32, height: 95 mm, cable gland: with, Standard

Documentation
