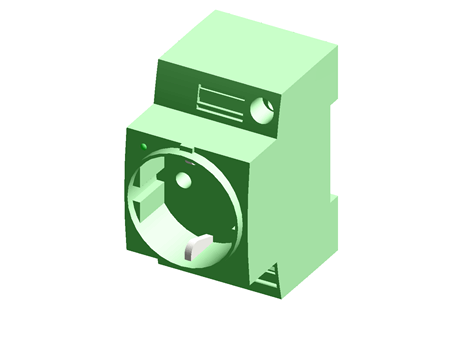

EO-CF/UT/LED/GN

Socket

Manufacturer	Phoenix Contact
Manufacturer product designation	Socket
product article number of manufacturer	0804027
GTIN	4055626225692
type of enveloping body	enveloping body cuboid
width	45
height	75.36314
depth	62.1

number of the executions of the housing parts	1
mounting design	serial installation
net weight	0.07482
color of housing part	green
rated voltage	250
degree of protection	IP20
Installation depth	62.1
Width in units of measurement	2.5

CAD models

Request for quotation

Product selection

Index	Selector	product article number of manufacturer	Manufacturer product designation	GTIN	type of enveloping body	width	height	depth	number of the executions of the housing parts	mounting design	net weight	color of housing part	rated voltage	degree of protection	Installation depth	Width in units of measurement
1	1	0804027	Socket	4055626225692	enveloping body cuboid	45	75.36314	62.1	1	serial installation	0.07482	green	250	IP20	62.1	2.5

Product Description

Socket, with light indicator, Pin connector pattern type CF, connection method: Screw connection, color: green, nom. voltage: 250 V AC (50 Hz), nominal current: 16 A, for mounting on a DIN rail in the service interface or direct mounting, standards/specifications: VDE 0620-1, IEC 60884-1, Country marking: Germany
