DIKD 1,5-LA 24RD/O-M

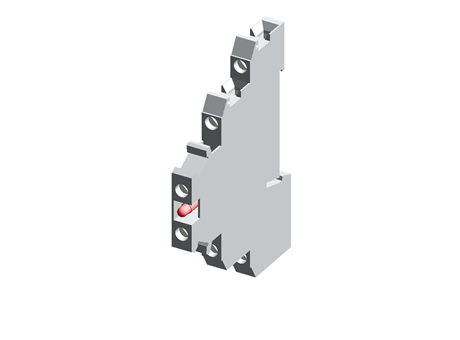

Initiator/actuator terminal block

Manufacturer	PHOENIX CONTACT
Manufacturer product designation	Initiator/actuator terminal block
Internal article number	2715814
GTIN (EAN) code	4017918061562
width	6.2
height	72.5
nominal cross section	2.5
depth	54.5

flammability rating of the insulating material (based on UL 94)	V2
Closing plate required	False
Connection type (1)	Screw connection
Power loss per pole, current-dependent [PlIp]	0.77
Max. line cross section, flexible	2.5
Max. line cross section, rigid	4
Min. line cross section, flexible	0.2
Min. line cross section, rigid	0.2

CAD models

Request for quotation

Product selection

Index	Selector	Internal article number	Manufacturer product designation	GTIN (EAN) code	width	height	nominal cross section	depth	flammability rating of the insulating material (based on UL 94)	Closing plate required	Connection type (1)	Power loss per pole, current-dependent [PlIp]	Max. line cross section, flexible	Max. line cross section, rigid	Min. line cross section, flexible	Min. line cross section, rigid
1	1	2715814	Initiator/actuator terminal block	4017918061562	6.2	72.5	2.5	54.5	V2	False	Screw connection	0.77	2.5	4	0.2	0.2

Product Description

Initiator/actuator terminal block, nom. voltage: 24 V, nominal current: 24 A, connection method: Screw connection, 1st, 2nd and 3rd level, Rated cross section: 2.5 mm², cross section: 0.2 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray
