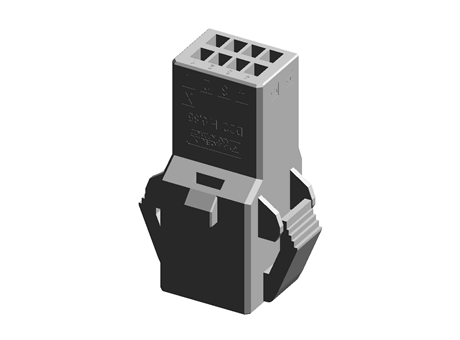

DD21H 0,85/ 8-PT-2,5-X

Feed-through plug

Manufacturer	Phoenix Contact
Manufacturer product designation	Feed-through plug
product article number of manufacturer	1378337
GTIN	4063151746537
width	22.2
height	16.2
number of the executions of the housing parts	0
net weight	0.00411

depth	30.69
certificate/approval	IEC 61984
Application standards	IEC 61984
flammability rating of the insulating material (based on UL 94)	V0
material of insulation	PBT
color of housing	black
Assembly	with cams
rated current	5

CAD models

Request for quotation

Product selection

Index	Selector	product article number of manufacturer	Manufacturer product designation	GTIN	width	height	number of the executions of the housing parts	net weight	depth	certificate/approval	Application standards	flammability rating of the insulating material (based on UL 94)	material of insulation	color of housing	Assembly	rated current
1	1	1378337	Feed-through plug	4063151746537	22.2	16.2	0	0.00411	30.69	IEC 61984	IEC 61984	V0	PBT	black	with cams	5

Product Description

Feed-through connector, color: black, nominal current: 5 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of rows: 2, number of positions: 8, product range: DD21H 0,85/..-PT, pitch: 2.5 mm, connection method: Crimp connection, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: CONNEXIS DD, Pin connector pattern alignment: Standard, locking: Snap-in locking, mounting method: Engagement nose, type of packaging: packed in cardboard
