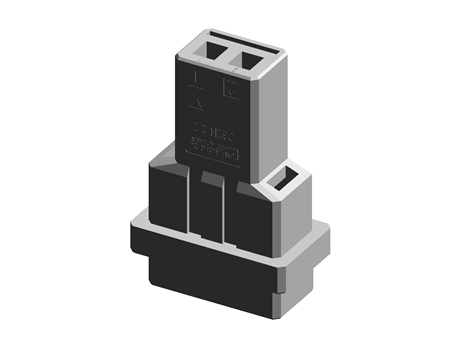

D32H 2,2/ 2-FH-5,08-Y

PCB connector

Manufacturer	Phoenix Contact
Manufacturer product designation	PCB connector
product article number of manufacturer	1378296
GTIN	4063151745868
width	22.43
height	9.35
number of the executions of the housing parts	0
net weight	0.00575

depth	33.6
certificate/approval	IEC 61984
Application standards	IEC 61984
flammability rating of the insulating material (based on UL 94)	V0
material of insulation	PBT
color of housing	black
Assembly	with cams
rated current	8

CAD models

Request for quotation

Product selection

Index	Selector	product article number of manufacturer	Manufacturer product designation	GTIN	width	height	number of the executions of the housing parts	net weight	depth	certificate/approval	Application standards	flammability rating of the insulating material (based on UL 94)	material of insulation	color of housing	Assembly	rated current
1	1	1378296	PCB connector	4063151745868	22.43	9.35	0	0.00575	33.6	IEC 61984	IEC 61984	V0	PBT	black	with cams	8

Product Description

PCB connector, color: black, nominal current: 8 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of rows: 1, number of positions: 2, product range: D32H 2,2/..-FH, pitch: 5.08 mm, connection method: Crimp connection, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: CONNEXIS D, locking: Snap-in locking, mounting method: Engagement nose, type of packaging: packed in cardboard
