CUC-MP-J1ST-A/2R4LT-LED

Modular RJ45 PCB connectors

Manufacturer	PHOENIX CONTACT
Manufacturer product designation	Modular RJ45 PCB connectors
Internal article number	1149854
GTIN (EAN) code	4063151146214
width	32.26
height	19.03
depth	16.25
Application standards	not available

material of insulation	not relevant
certificate/approval	cUL Recognized, UL Recognized
rated current	1.5
Pole number	8
assembly height	13.68

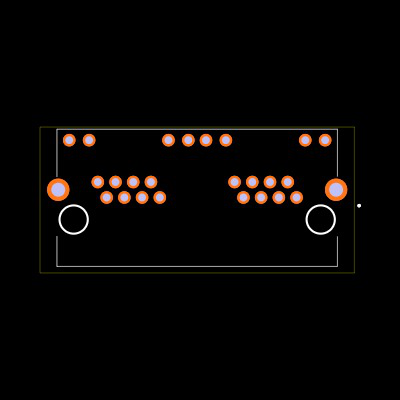

Recommended SMD solder pad geometry	null
Direction mating face	Standard
Plug-in direction	0

CAD models

Request for quotation

Product selection

Index	Selector	Internal article number	Manufacturer product designation	GTIN (EAN) code	width	height	depth	Application standards	material of insulation	certificate/approval	rated current	Pole number	assembly height	Recommended SMD solder pad geometry	Direction mating face	Plug-in direction
1	1	1149854	Modular RJ45 PCB connectors	4063151146214	32.26	19.03	16.25	not available	not relevant	cUL Recognized, UL Recognized	1.5	8	13.68	null	Standard	0

Product Description

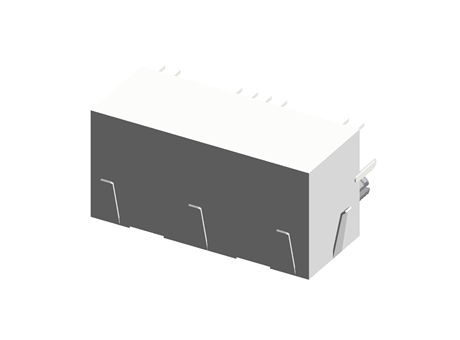

Modular RJ45 PCB connectors, 1x2 multi-port, connection direction of the connector to the PCB: 90 °, Tab up, Shielded, shield springs, LED (yellow, green), number of positions: 8, 10 Gbps, PoE++, THT, THD, Wave, IP20, type of packaging: Tray
