CHARX ST2C-DC150-5,0MES00P

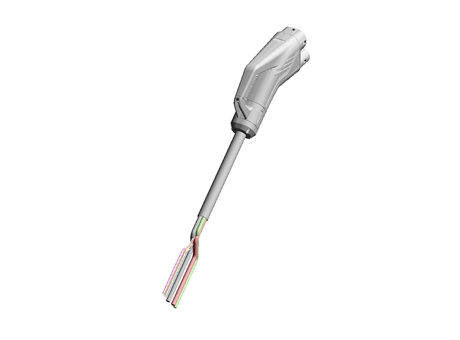

DC charging cable

Manufacturer	PHOENIX CONTACT
Manufacturer product designation	DC charging cable
Internal article number	1396481
GTIN (EAN) code	4063151780920
Design of the line	even
nominal voltage	1000
Nominal current	150
Current type	DC

With temperature sensor	True
Type infrastructure side	free conductor end
With Incable Control Box (ICCB)	False
Charging mode	Mode 4
length of the cable	5
Type vehicle side	type 2 CCS
Number of communication conductors	2

CAD models

Request for quotation

Product selection

Index	Selector	Internal article number	Manufacturer product designation	GTIN (EAN) code	Design of the line	nominal voltage	Nominal current	Current type	With temperature sensor	Type infrastructure side	With Incable Control Box (ICCB)	Charging mode	length of the cable	Type vehicle side	Number of communication conductors
1	1	1396481	DC charging cable	4063151780920	even	1000	150	DC	True	free conductor end	False	Mode 4	5	type 2 CCS	2

Product Description

CHARX connect standard, CCS type 2, DC charging cable, up to 500 A in Boost mode, 150 A permanent, 1000 V DC, with vehicle charging connector and open cable end, cable: 5 m, black, straight, with replaceable mating face frame, with replaceable DC power contacts, with connected PP contact, with analog temperature sensors, no liquid cooling, PHOENIX CONTACT logo, IEC 62196-3, for charging electric vehicles (EV) with direct current (DC)
