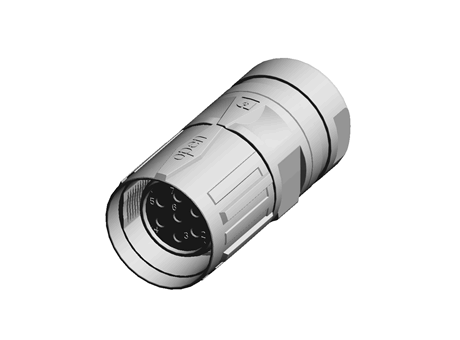

CA-07P1N8A80DNSX

Cable connector

Manufacturer	Phoenix Contact
Manufacturer product designation	Cable connector
product article number of manufacturer	1243689
GTIN	4063151473686
number of the executions of the housing parts	0
mounting design	plug insert
net weight	0.0869
certificate/approval	cULus Recognized

Min. operating temperature	-40
Max. operating temperature	125
Application standards	not available
Pole number	7
PE connection present	False
Type of interlock	Screw locking mechanism
Coding (head 1)	N
Design of housing	even

CAD models

Request for quotation

Product selection

Index	Selector	product article number of manufacturer	Manufacturer product designation	GTIN	number of the executions of the housing parts	mounting design	net weight	certificate/approval	Min. operating temperature	Max. operating temperature	Application standards	Pole number	PE connection present	Type of interlock	Coding (head 1)	Design of housing
1	1	1243689	Cable connector	4063151473686	0	plug insert	0.0869	cULus Recognized	-40	125	not available	7	False	Screw locking mechanism	N	even

Product Description

M23, Cable connector, series: CA, straight, shielded: yes, SPEEDCON, No. of pos.: 7, Direction of rotation: Standard, contact connection type: Pin, Crimp connection, cable diameter range: 3 mm ... 14.5 mm, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)
