Product Type SPA0*D

Manufacturer	PEPPERS CABLE GLANDS LIMITED

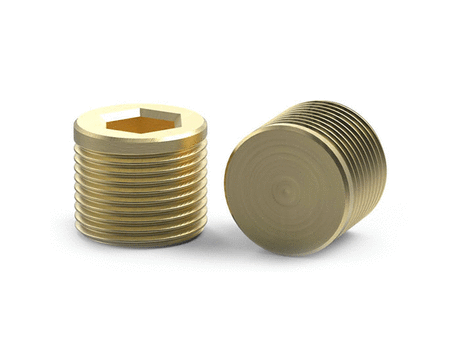

Description	Metallic Stopping Plugs, M12
Part number	SPA0BD/NP/M12
IP RATING	IP66 & Type 4X
OPERATING TEMP	-100°C to +400°C
MATERIAL	Brass
ISO Metric Thread	M12

CAD models

Request for quotation

Product selection

Index	Selector	ISO Metric Thread	Hex Socket A/F	Overall Length	Weight (Kgs)
1	1	M12	6	17	0,011
2	2	M16	8	17	0,025
3	3	M20	10	17	0,035
4	4	M25	12	17	0,060
5	5	M32	12	17	0,105
6	6	M40	14	17	0,170
7	7	M50	17	17	0,265
8	8	M63	17	17	0,450
9	9	M75	19	17	0,600
10	10	M80	22	22	0,750
11	11	M85	22	22	0,880
12	12	M90	22	22	0,940
13	13	M100	22	22	1,030

Material

Nickel Plated

Product Description

“SP” Series Certified Metallic Stopping (Blanking) Plugs provide a method of sealing unused entries in Ex equipment. They maintain Ex db, Ex eb and Ex ta methods of protection and IP66 for IEC type applications. They are Class I Division 1, Class II Division 1, Class II and Class 1 Zone 1 approved for NEC and CEC type applications whilst also maintain Type 4X rating.

Documentation

Datasheet
