Product Type CR-S*M

Manufacturer	PEPPERS CABLE GLANDS LIMITED

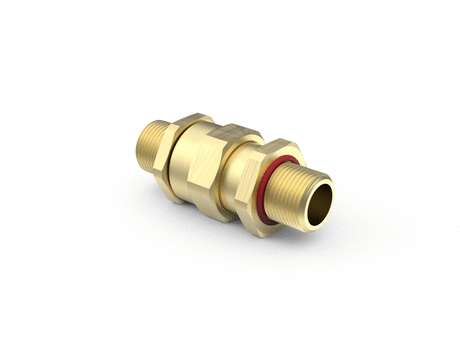

Description	Single Seal Barrier Gland featuring Peppers T-1000 Compound with Male Thread for Conduit Connection, CR-SBM20/NP/M20/M20
Part number	CR-SBM20/NP/M20/M20
Gland Size	20
Male Entry Thread	M20 x 1.5
Male Connection Thread	M20 x 1.5

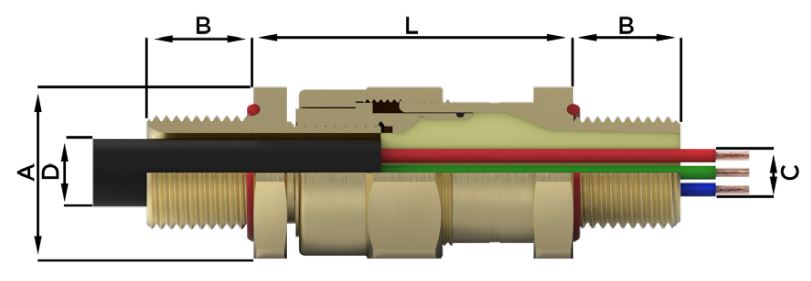

Metric Thread Length [B]	16
Nominal Protusion Length [L] (Metric)	45
IP RATING	IP66 & IP68 (100 metres – 7 Days), Type 4X & DTS01:1991
OPERATING TEMP	-60°C to +135°C
MATERIAL	Brass

CAD models

Request for quotation

Product selection

Index	Selector	Gland Size	Male Entry Thread (Metric)	Male Entry Thread (NPT)	Metric Entry Thread Length [B]	Female Entry Thread (Metric)	Female Entry Thread (NPT)	Gland Seal Range - Number of Cores [C]	Gland Seal Range - Max Ø Over Cores [C]	Gland Seal Range - Max Outter Sheath [D]	Nominal Protrusion Length [L] (Metric)	Across Flats [A] (Metric Versions)	Across Corners (Metric Versions)	Weight (Kgs)
1	1	20	M20 x 1.5	1/2” or 3/4”	16	M20 x 1.5	1/2” or 3/4”	40	12,5	14	45	30	33	0,224
2	2	25	M25 x 1.5	3/4” or 1”	16	M25 x 1.5	3/4” or 1”	60	17,8	20	49	37,6	41,4	0,323
3	3	32	M32 x 1.5	1” or 1 ¼”	16	M32 x 1.5	1” or 1 ¼”	80	23,5	26,3	55	46	50,6	0,548
4	4	40	M40 x 1.5	1 ¼” or 1 ½”	16	M40 x 1.5	1 ¼” or 1 ½”	130	28,8	32,2	56	55	60,5	0,77
5	5	50S	-	1 ½”	16	M50 x 1.5	1 ½” or 2”	200	34,2	38,2	62	65	71,5	0,875
6	6	50	M50 x 1.5	2”	16	M50 x 1.5	2”	400	39,4	44,1	62	65	71,5	0,875
7	7	63S	-	2”	19	M63 x 1.5	2” or 2 ½”	400	44,8	50,1	63	80	88	1,281
8	8	63	M63 x 1.5	2 ½”	19	M63 x 1.5	2 ½”	425	50	56	63	80	88	1,281
9	9	75S	-	2 ½”	19	M75 x 1.5	2 ½” or 3"	425	55,4	62	63	90	99	1,406
10	10	75	M75 x 1.5	3” or 3 ½”	19	M75 x 1.5	3”	425	60,8	68	63	90	99	1,406
11	11	80	M80 x 2.0	3” or 3 ½”	25	M80 x 2.0	3” or 3 ½”	425	64,4	72	81	104	115,2	2,957
12	12	85	M85 x 2.0	3” or 3 ½”	25	M85 x 2.0	3” or 3 ½”	425	69,8	78	81	104	115,2	2,488
13	13	90	M90 x 2.0	3 ½” or 4”	25	M90 x 2.0	3 ½” or 4”	425	75,1	84	81	114	125,7	3,029
14	14	100	M100 x 2.0	3 ½” or 4”	25	M100 x 2.0	3 ½” or 4”	425	80,5	90	81	114	125,7	2,825

Material

Locknut & IP Washer

Including Earth Tag

Including Serrated Washer

Quantity per kit

Nickel Plated

Male Entry Thread

Male Connection Thread

Product Description

“CR-S*M” type glands, used in any orientation, are certified Flameproof Ex db, Increased Safety Ex eb, Restricted Breathing Ex nR and Dust Protected Ex ta. They are suitable for use in Group I Mining, Zone 1 and 2 for Gas Groups IIA, IIB and IIC and additionally for use in Zones 20, 21 and 22 for Dust Groups IIIA, IIIB and IIIC. Also certified for Divison installations under CEC. Commonly referred to as a “Conduit Stopper Box”, they are suitable for use with conductors carried in conduit or as a line bushing for terminating flying leads. They provide a compound barrier Ex db & IP seal on the cable inner cores, eliminating damage to cables that exhibit “cold flow” characteristics. The unique features include Peppers T-1000, the sealing compound that enables a quick and easy installation and an innovative barrier chamber that allows for a full inspection of the compound fill. The gland maintains IP66 & IP68 to 100 metres and is deluge proof without the use of an additional seal or deluge boot. It is supplied with an IP O-ring seal as standard on metric entry threads. The gland is supplied with a male conduit connection thread.
