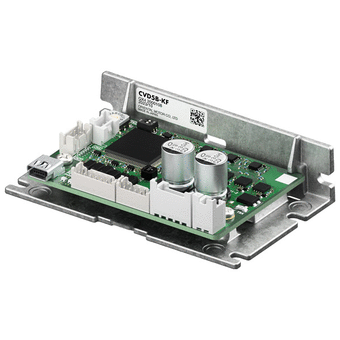

CVD 5-Phase Stepper Motor Drivers (Fully Closed-Loop Control Type)

Manufacturer Oriental Motor U.S.A. Corp.
Description CVD 5-Phase Stepper Motor Driver with Fully Closed-Loop Control (Right-Angle Type) (24 VDC)
Manufacturer Part Number CVD5BR-KF
E-Shop link https://catalog.orientalmotor.com/item/cvd-5-phase-stepper-drivers/epper-motor-drivers-fully-closed-loop-control-type/cvd5br-kf
Product Line Oriental Motor®
RoHS Compliant These products do not contain substances that exceed the regulation values in the RoHS Directive.
Safety Standards UL; CE
Lead Wires 5
Driver Type 5-Phase, Fully Closed-Loop Control Type
Power Supply 24 VDC
Protocol Modbus RTU Mode
Electrical Characteristics EIA-485 Compliant Use a twisted pair wire and keep total extension length to 3 m.
Transmission Rate Select either from 9600 bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps, or 230400 bps
Communication Method Half duplex, asynchronous communication (data: 8 bits, stop bit: 1 bit or 2 bits, parity: none, even or odd)
Driver Board Type with Mounting Plate (Right-Angle Type)
Input Current [A] 0.6 ~ 3.0
Output Current [A/phase] 0.35～2.4
Excitation Mode Microstep
Number of Connectable Units Up to 31 drivers can be connected to a single host controller
