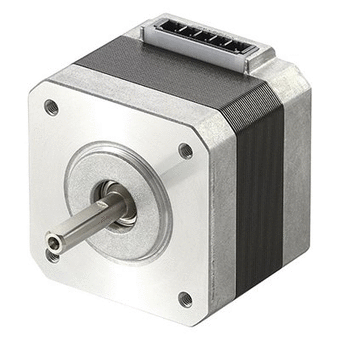

1.65 in. (42 mm) NEMA 17 PKP Series 5-Phase Stepper Motors

Manufacturer	Oriental Motor U.S.A. Corp.
Description	1.65 in. (42 mm) PKP Series 5-Phase Stepper Motor, PKP544MN18A
Manufacturer Part Number	PKP544MN18A
E-Shop link	https://catalog.orientalmotor.com/item/pkp-series-5-phase-stepper-motors/pk-series-42mm-5-phase-stepper-motors/pkp544mn18a
Frame Size [in]	1.65
Frame Size [mm]	42
Motor Length [mm]	39
Motor Length [in.]	1.54
Holding Torque [N·m]	0.26
Holding Torque [oz-in]	36
Type	High-Resolution
Shaft/Gear Type	Round Shaft with Flat (No Gearhead)
Gear Ratio (X:1) [:1]
Backlash
Shaft	Single
Rotor Inertia [oz-in²]	0.33
Rotor Inertia [kg·m²]	60x10-7
RoHS Compliant	These products do not contain substances that exceed the regulation values in the RoHS Directive.
Safety Standards	CE
Insulation Resistance	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.
Dielectric Strength	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz
Ambient Humidity	85% or less (Non-Condensing)
Shaft Runout	0.05 mm (0.002 in.) T.I.R.
Concentricity	0.075 mm (0.003 in.) T.I.R.
Perpendicularity	0.075 mm (0.003 in.) T.I.R.

Basic Step Angle	0.36º
Output Shaft Diameter	5 mm
Encoder Type
Encoder Resolution (P/R)
Output
Input Current (mA)
Input Voltage (V)
Connection Type	New Pentagon (Bipolar)
Temperature Rise	Winding temperature rise 144ºF (80ºC) max.
Ambient Temperature Range	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)
Radial Load [N]	0 mm from Shaft End = 20\|5 mm from Shaft End = 25\|10 mm from Shaft End = 34\|15 mm from Shaft End = 52
Radial Load [lb]	0 in. from Shaft End = 4.5\|0.2 in. from Shaft End = 5.6\|0.39 in. from Shaft End = 7.6\|0.59 in. from Shaft End = 11.7
Axial Load [N]	10
Axial Load [lb]	2.2
Radial Play	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)
Axial Play	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)
Motor Connection Type	Connector
Lead Wires	5
Current per Phase [A/phase]	1.8
Output Shaft	Metric
Output Type
Step Angle [°]	0.36
Electromagnetic Brake	Not Equipped
Gear Type	No Gearhead

CAD models

Request for quotation

Product selection

Index	CAD	Selector	Manufacturer Part Number	Frame Size [in]	Frame Size [mm]	Motor Length [mm]	Motor Length [in.]	Holding Torque [N·m]	Holding Torque [oz-in]	Type	Shaft/Gear Type	Gear Ratio (X:1) [:1]	Backlash	Shaft	Rotor Inertia [oz-in²]	Rotor Inertia [kg·m²]	RoHS Compliant	Safety Standards	Insulation Resistance	Dielectric Strength	Ambient Humidity	Shaft Runout	Concentricity	Perpendicularity	Basic Step Angle	Output Shaft Diameter	Encoder Type	Encoder Resolution (P/R)	Output	Input Current (mA)	Input Voltage (V)	Connection Type	Temperature Rise	Ambient Temperature Range	Radial Load [N]	Radial Load [lb]	Axial Load [N]	Axial Load [lb]	Radial Play	Axial Play	Motor Connection Type	Lead Wires	Current per Phase [A/phase]	Output Shaft	Output Type	Step Angle [°]	Electromagnetic Brake	Gear Type
1	No CAD available	1	PKP544MN18A	1.65	42	39	1.54	0.26	36	High-Resolution	Round Shaft with Flat (No Gearhead)			Single	0.33	60x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.	CE	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.36º	5 mm						New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 20\|5 mm from Shaft End = 25\|10 mm from Shaft End = 34\|15 mm from Shaft End = 52	0 in. from Shaft End = 4.5\|0.2 in. from Shaft End = 5.6\|0.39 in. from Shaft End = 7.6\|0.59 in. from Shaft End = 11.7	10	2.2	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Connector	5	1.8	Metric		0.36	Not Equipped	No Gearhead
2	No CAD available	12	PKP544MN18B	1.65	42	39	1.54	0.26	36	High-Resolution	Round Shaft with Flat (No Gearhead)			Double	0.33	60x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.	CE	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.36º	5 mm						New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 20\|5 mm from Shaft End = 25\|10 mm from Shaft End = 34\|15 mm from Shaft End = 52	0 in. from Shaft End = 4.5\|0.2 in. from Shaft End = 5.6\|0.39 in. from Shaft End = 7.6\|0.59 in. from Shaft End = 11.7	10	2.2	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Connector	5	1.8	Metric		0.36	Not Equipped	No Gearhead
3	No CAD available	23	PKP546MN18A	1.65	42	59	2.32	0.44	62	High-Resolution	Round Shaft with Flat (No Gearhead)			Single	0.66	121x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.	CE	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.36º	5 mm						New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 20\|5 mm from Shaft End = 25\|10 mm from Shaft End = 34\|15 mm from Shaft End = 52	0 in. from Shaft End = 4.5\|0.2 in. from Shaft End = 5.6\|0.39 in. from Shaft End = 7.6\|0.59 in. from Shaft End = 11.7	10	2.2	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Connector	5	1.8	Metric		0.36	Not Equipped	No Gearhead
4	No CAD available	31	PKP546MN18B	1.65	42	59	2.32	0.44	62	High-Resolution	Round Shaft with Flat (No Gearhead)			Double	0.66	121x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.	CE	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.36º	5 mm						New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 20\|5 mm from Shaft End = 25\|10 mm from Shaft End = 34\|15 mm from Shaft End = 52	0 in. from Shaft End = 4.5\|0.2 in. from Shaft End = 5.6\|0.39 in. from Shaft End = 7.6\|0.59 in. from Shaft End = 11.7	10	2.2	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Connector	5	1.8	Metric		0.36	Not Equipped	No Gearhead
5	No CAD available	32	PKP543N18A2	1.65	42	33	1.3	0.22	31	Standard	Round Shaft with Flat (No Gearhead)			Single	0.192	35x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.	CE	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	5 mm						New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 35\|5 mm from Shaft End = 44\|10 mm from Shaft End = 58\|15 mm from Shaft End = 85	0 in. from Shaft End = 7.9\|0.2 in. from Shaft End = 9.9\|0.39 in. from Shaft End = 13.0\|0.59 in. from Shaft End = 19.1	15	3.4	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric		0.72	Not Equipped	No Gearhead
6	No CAD available	33	PKP543N18B2	1.65	42	33	1.3	0.22	31	Standard	Round Shaft with Flat (No Gearhead)			Double	0.192	35x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.	CE	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	5 mm						New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 35\|5 mm from Shaft End = 44\|10 mm from Shaft End = 58\|15 mm from Shaft End = 85	0 in. from Shaft End = 7.9\|0.2 in. from Shaft End = 9.9\|0.39 in. from Shaft End = 13.0\|0.59 in. from Shaft End = 19.1	15	3.4	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric		0.72	Not Equipped	No Gearhead
7	No CAD available	34	PKP544N18A2	1.65	42	39	1.54	0.3	42	Standard	Round Shaft with Flat (No Gearhead)			Single	0.3	55x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.	CE	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	5 mm						New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 35\|5 mm from Shaft End = 44\|10 mm from Shaft End = 58\|15 mm from Shaft End = 85	0 in. from Shaft End = 7.9\|0.2 in. from Shaft End = 9.9\|0.39 in. from Shaft End = 13.0\|0.59 in. from Shaft End = 19.1	15	3.4	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric		0.72	Not Equipped	No Gearhead
8	No CAD available	35	PKP544N18B2	1.65	42	39	1.54	0.3	42	Standard	Round Shaft with Flat (No Gearhead)			Double	0.3	55x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.	CE	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	5 mm						New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 35\|5 mm from Shaft End = 44\|10 mm from Shaft End = 58\|15 mm from Shaft End = 85	0 in. from Shaft End = 7.9\|0.2 in. from Shaft End = 9.9\|0.39 in. from Shaft End = 13.0\|0.59 in. from Shaft End = 19.1	15	3.4	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric		0.72	Not Equipped	No Gearhead
9	No CAD available	36	PKP545N18A2	1.65	42	47	1.85	0.37	52	Standard	Round Shaft with Flat (No Gearhead)			Single	0.39	71x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.	CE	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	5 mm						New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 35\|5 mm from Shaft End = 44\|10 mm from Shaft End = 58\|15 mm from Shaft End = 85	0 in. from Shaft End = 7.9\|0.2 in. from Shaft End = 9.9\|0.39 in. from Shaft End = 13.0\|0.59 in. from Shaft End = 19.1	15	3.4	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric		0.72	Not Equipped	No Gearhead
10	No CAD available	2	PKP545N18B2	1.65	42	47	1.85	0.37	52	Standard	Round Shaft with Flat (No Gearhead)			Double	0.39	71x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.	CE	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	5 mm						New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 35\|5 mm from Shaft End = 44\|10 mm from Shaft End = 58\|15 mm from Shaft End = 85	0 in. from Shaft End = 7.9\|0.2 in. from Shaft End = 9.9\|0.39 in. from Shaft End = 13.0\|0.59 in. from Shaft End = 19.1	15	3.4	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric		0.72	Not Equipped	No Gearhead
11	No CAD available	3	PKP546N18A2	1.65	42	59	2.32	0.5	71	Standard	Round Shaft with Flat (No Gearhead)			Single	0.6	110x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.	CE	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	5 mm						New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 35\|5 mm from Shaft End = 44\|10 mm from Shaft End = 58\|15 mm from Shaft End = 85	0 in. from Shaft End = 7.9\|0.2 in. from Shaft End = 9.9\|0.39 in. from Shaft End = 13.0\|0.59 in. from Shaft End = 19.1	15	3.4	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric		0.72	Not Equipped	No Gearhead
12	No CAD available	4	PKP546N18B2	1.65	42	59	2.32	0.5	71	Standard	Round Shaft with Flat (No Gearhead)			Double	0.6	110x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.	CE	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	5 mm						New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 35\|5 mm from Shaft End = 44\|10 mm from Shaft End = 58\|15 mm from Shaft End = 85	0 in. from Shaft End = 7.9\|0.2 in. from Shaft End = 9.9\|0.39 in. from Shaft End = 13.0\|0.59 in. from Shaft End = 19.1	15	3.4	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric		0.72	Not Equipped	No Gearhead
13	No CAD available	5	PKP544N18A2-TS3.6	1.65	42	70.5	2.78	0.65	91.2	Geared	Spur Gear (Offset Shaft)	3.6	45 arcmin (0.75°)	Single	0.3	55x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.	CE	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	6 mm						New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 20\|5 mm from Shaft End = 30\|10 mm from Shaft End = 40\|15 mm from Shaft End = 50	0 in. from Shaft End = 4.5\|0.2 in. from Shaft End = 6.7\|0.39 in. from Shaft End = 9\|0.59 in. from Shaft End = 11.2	15	3.3	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric		0.20	Not Equipped	Spur Gear, Low Backlash (up to 45 arc min), Offset Shaft
14	No CAD available	6	PKP544N18A2-TS7.2	1.65	42	70.5	2.78	1.2	169.6	Geared	Spur Gear (Offset Shaft)	7.2	25 arcmin (0.42°)	Single	0.3	55x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.	CE	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	6 mm						New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 20\|5 mm from Shaft End = 30\|10 mm from Shaft End = 40\|15 mm from Shaft End = 50	0 in. from Shaft End = 4.5\|0.2 in. from Shaft End = 6.7\|0.39 in. from Shaft End = 9\|0.59 in. from Shaft End = 11.2	15	3.3	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric		0.10	Not Equipped	Spur Gear, Low Backlash (up to 45 arc min), Offset Shaft
15	No CAD available	7	PKP544N18A2-TS10	1.65	42	70.5	2.78	1.7	240	Geared	Spur Gear (Offset Shaft)	10	25 arcmin (0.42°)	Single	0.3	55x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.	CE	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	6 mm						New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 20\|5 mm from Shaft End = 30\|10 mm from Shaft End = 40\|15 mm from Shaft End = 50	0 in. from Shaft End = 4.5\|0.2 in. from Shaft End = 6.7\|0.39 in. from Shaft End = 9\|0.59 in. from Shaft End = 11.2	15	3.3	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric		0.72	Not Equipped	Spur Gear, Low Backlash (up to 45 arc min), Offset Shaft
16	No CAD available	8	PKP543N18A2-TS20	1.65	42	64.5	2.59	2	283.2	Geared	Spur Gear (Offset Shaft)	20	15 arcmin (0.25°)	Single	0.191	35x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.	CE	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	6 mm						New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 40\|5 mm from Shaft End = 50\|10 mm from Shaft End = 60\|15 mm from Shaft End = 70	0 in. from Shaft End = 9\|0.2 in. from Shaft End = 11.2\|0.39 in. from Shaft End = 13.5\|0.59 in. from Shaft End = 15.7	15	3.3	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric		0.036	Not Equipped	Spur Gear, Low Backlash (up to 45 arc min), Offset Shaft
17	No CAD available	9	PKP543N18A2-TS30	1.65	42	64.5	2.59	2.3	320	Geared	Spur Gear (Offset Shaft)	30	15 arcmin (0.25°)	Single	0.191	35x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.	CE	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	6 mm						New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 40\|5 mm from Shaft End = 50\|10 mm from Shaft End = 60\|15 mm from Shaft End = 70	0 in. from Shaft End = 9\|0.2 in. from Shaft End = 11.2\|0.39 in. from Shaft End = 13.5\|0.59 in. from Shaft End = 15.7	15	3.3	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric		0.024	Not Equipped	Spur Gear, Low Backlash (up to 45 arc min), Offset Shaft
18	No CAD available	10	PKP544N18B2-TS3.6	1.65	42	70.5	2.78	0.65	91.2	Geared	Spur Gear (Offset Shaft)	3.6	45 arcmin (0.75°)	Double	0.3	55x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.	CE	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	6 mm						New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 20\|5 mm from Shaft End = 30\|10 mm from Shaft End = 40\|15 mm from Shaft End = 50	0 in. from Shaft End = 4.5\|0.2 in. from Shaft End = 6.7\|0.39 in. from Shaft End = 9\|0.59 in. from Shaft End = 11.2	15	3.3	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric		0.20	Not Equipped	Spur Gear, Low Backlash (up to 45 arc min), Offset Shaft
19	No CAD available	11	PKP544N18B2-TS7.2	1.65	42	70.5	2.78	1.2	169.6	Geared	Spur Gear (Offset Shaft)	7.2	25 arcmin (0.42°)	Double	0.3	55x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.	CE	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	6 mm						New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 20\|5 mm from Shaft End = 30\|10 mm from Shaft End = 40\|15 mm from Shaft End = 50	0 in. from Shaft End = 4.5\|0.2 in. from Shaft End = 6.7\|0.39 in. from Shaft End = 9\|0.59 in. from Shaft End = 11.2	15	3.3	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric		0.10	Not Equipped	Spur Gear, Low Backlash (up to 45 arc min), Offset Shaft
20	No CAD available	13	PKP544N18B2-TS10	1.65	42	70.5	2.78	1.7	240	Geared	Spur Gear (Offset Shaft)	10	25 arcmin (0.42°)	Double	0.3	55x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.	CE	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	6 mm						New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 20\|5 mm from Shaft End = 30\|10 mm from Shaft End = 40\|15 mm from Shaft End = 50	0 in. from Shaft End = 4.5\|0.2 in. from Shaft End = 6.7\|0.39 in. from Shaft End = 9\|0.59 in. from Shaft End = 11.2	15	3.3	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric		0.72	Not Equipped	Spur Gear, Low Backlash (up to 45 arc min), Offset Shaft
21	No CAD available	14	PKP543N18B2-TS20	1.65	42	64.5	2.59	2	283.2	Geared	Spur Gear (Offset Shaft)	20	15 arcmin (0.25°)	Double	0.191	35x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.	CE	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	6 mm						New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 40\|5 mm from Shaft End = 50\|10 mm from Shaft End = 60\|15 mm from Shaft End = 70	0 in. from Shaft End = 9\|0.2 in. from Shaft End = 11.2\|0.39 in. from Shaft End = 13.5\|0.59 in. from Shaft End = 15.7	15	3.3	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric		0.036	Not Equipped	Spur Gear, Low Backlash (up to 45 arc min), Offset Shaft
22	No CAD available	15	PKP543N18B2-TS30	1.65	42	64.5	2.59	2.3	320	Geared	Spur Gear (Offset Shaft)	30	15 arcmin (0.25°)	Double	0.191	35x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.	CE	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	6 mm						New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 40\|5 mm from Shaft End = 50\|10 mm from Shaft End = 60\|15 mm from Shaft End = 70	0 in. from Shaft End = 9\|0.2 in. from Shaft End = 11.2\|0.39 in. from Shaft End = 13.5\|0.59 in. from Shaft End = 15.7	15	3.3	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric		0.024	Not Equipped	Spur Gear, Low Backlash (up to 45 arc min), Offset Shaft
23		16	PKP544N18A2-R3J	1.65	42	39	1.54	0.3	42	Standard	Round Shaft with Flat (No Gearhead)			Single	0.3	56x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.		100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	5 mm	Incremental	1000 P/R	3-Channel	45 mA max.	5 VDC	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 35\|5 mm from Shaft End = 44\|10 mm from Shaft End = 58\|15 mm from Shaft End = 85	0 in. from Shaft End = 7.9\|0.2 in. from Shaft End = 9.9\|0.39 in. from Shaft End = 13.0\|0.59 in. from Shaft End = 19.1	15	3.4	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric	Voltage (TTL equivalent)	0.72	Not Equipped	No Gearhead
24		17	PKP544N18A2-R3JL	1.65	42	39	1.54	0.3	42	Standard	Round Shaft with Flat (No Gearhead)			Single	0.3	56x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.		100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	5 mm	Incremental	1000 P/R	3-Channel	30 mA max.	5 VDC	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 35\|5 mm from Shaft End = 44\|10 mm from Shaft End = 58\|15 mm from Shaft End = 85	0 in. from Shaft End = 7.9\|0.2 in. from Shaft End = 9.9\|0.39 in. from Shaft End = 13.0\|0.59 in. from Shaft End = 19.1	15	3.4	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric	Line Driver	0.72	Not Equipped	No Gearhead
25		18	PKP543N18A2-R3G	1.65	42	46.5	1.83	0.22	31	High-Torque	Round Shaft with Flat (No Gearhead)			Single	0.197	36x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.		100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	5 mm	Incremental	500 P/R	3-Channel	45 mA max.	5 VDC	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 35\|5 mm from Shaft End = 44\|10 mm from Shaft End = 58\|15 mm from Shaft End = 85	0 in. from Shaft End = 7.9\|0.2 in. from Shaft End = 9.9\|0.39 in. from Shaft End = 13.0\|0.59 in. from Shaft End = 19.1	15	3.4	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric	Voltage (TTL equivalent)	0.72	Not Equipped	No Gearhead
26		19	PKP543N18A2-R3GL	1.65	42	46.5	1.83	0.22	31	High-Torque	Round Shaft with Flat (No Gearhead)			Single	0.197	36x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.		100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	5 mm	Incremental	500 P/R	3-Channel	30 mA max.	5 VDC	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 35\|5 mm from Shaft End = 44\|10 mm from Shaft End = 58\|15 mm from Shaft End = 85	0 in. from Shaft End = 7.9\|0.2 in. from Shaft End = 9.9\|0.39 in. from Shaft End = 13.0\|0.59 in. from Shaft End = 19.1	15	3.4	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric	Line Driver	0.72	Not Equipped	No Gearhead
27		20	PKP544N18A2-R3G	1.65	42	52.5	2.07	0.3	42	High-Torque	Round Shaft with Flat (No Gearhead)			Single	0.306	56x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.		100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	5 mm	Incremental	500 P/R	3-Channel	45 mA max.	5 VDC	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 35\|5 mm from Shaft End = 44\|10 mm from Shaft End = 58\|15 mm from Shaft End = 85	0 in. from Shaft End = 7.9\|0.2 in. from Shaft End = 9.9\|0.39 in. from Shaft End = 13.0\|0.59 in. from Shaft End = 19.1	15	3.4	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric	Voltage (TTL equivalent)	0.72	Not Equipped	No Gearhead
28		21	PKP544N18A2-R3GL	1.65	42	52.5	2.07	0.3	42	High-Torque	Round Shaft with Flat (No Gearhead)			Single	0.306	56x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.		100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	5 mm	Incremental	500 P/R	3-Channel	30 mA max.	5 VDC	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 35\|5 mm from Shaft End = 44\|10 mm from Shaft End = 58\|15 mm from Shaft End = 85	0 in. from Shaft End = 7.9\|0.2 in. from Shaft End = 9.9\|0.39 in. from Shaft End = 13.0\|0.59 in. from Shaft End = 19.1	15	3.4	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric	Line Driver	0.72	Not Equipped	No Gearhead
29		22	PKP545N18A2-R3G	1.65	42	60.5	2.38	0.37	52	High-Torque	Round Shaft with Flat (No Gearhead)			Single	0.394	72x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.		100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	5 mm	Incremental	500 P/R	3-Channel	45 mA max.	5 VDC	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 35\|5 mm from Shaft End = 44\|10 mm from Shaft End = 58\|15 mm from Shaft End = 85	0 in. from Shaft End = 7.9\|0.2 in. from Shaft End = 9.9\|0.39 in. from Shaft End = 13.0\|0.59 in. from Shaft End = 19.1	15	3.4	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric	Voltage (TTL equivalent)	0.72	Not Equipped	No Gearhead
30		24	PKP545N18A2-R3GL	1.65	42	60.5	2.38	0.37	52	High-Torque	Round Shaft with Flat (No Gearhead)			Single	0.394	72x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.		100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	5 mm	Incremental	500 P/R	3-Channel	30 mA max.	5 VDC	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 35\|5 mm from Shaft End = 44\|10 mm from Shaft End = 58\|15 mm from Shaft End = 85	0 in. from Shaft End = 7.9\|0.2 in. from Shaft End = 9.9\|0.39 in. from Shaft End = 13.0\|0.59 in. from Shaft End = 19.1	15	3.4	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric	Line Driver	0.72	Not Equipped	No Gearhead
31		25	PKP546N18A2-R3G	1.65	42	72.5	2.85	0.5	71	High-Torque	Round Shaft with Flat (No Gearhead)			Single	0.607	111x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.		100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	5 mm	Incremental	500 P/R	3-Channel	45 mA max.	5 VDC	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 35\|5 mm from Shaft End = 44\|10 mm from Shaft End = 58\|15 mm from Shaft End = 85	0 in. from Shaft End = 7.9\|0.2 in. from Shaft End = 9.9\|0.39 in. from Shaft End = 13.0\|0.59 in. from Shaft End = 19.1	15	3.4	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric	Voltage (TTL equivalent)	0.72	Not Equipped	No Gearhead
32		26	PKP546N18A2-R3GL	1.65	42	72.5	2.85	0.5	71	High-Torque	Round Shaft with Flat (No Gearhead)			Single	0.607	111x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.		100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	5 mm	Incremental	500 P/R	3-Channel	30 mA max.	5 VDC	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 35\|5 mm from Shaft End = 44\|10 mm from Shaft End = 58\|15 mm from Shaft End = 85	0 in. from Shaft End = 7.9\|0.2 in. from Shaft End = 9.9\|0.39 in. from Shaft End = 13.0\|0.59 in. from Shaft End = 19.1	15	3.4	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric	Line Driver	0.72	Not Equipped	No Gearhead
33		27	PKP544MN18A-R3J	1.65	42	52.5	2.07	0.26	37	High-Resolution	Round Shaft with Flat (No Gearhead)			Single	0.334	61x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.		100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.36º	5 mm	Incremental	1000 P/R	3-Channel	45 mA max.	5 VDC	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 20\|5 mm from Shaft End = 25\|10 mm from Shaft End = 34\|15 mm from Shaft End = 52	0 in. from Shaft End = 4.5\|0.2 in. from Shaft End = 5.6\|0.39 in. from Shaft End = 7.6\|0.59 in. from Shaft End = 11.7	10	2.25	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric	Voltage (TTL equivalent)	0.36	Not Equipped	No Gearhead
34		28	PKP544MN18A-R3JL	1.65	42	52.5	2.07	0.26	37	High-Resolution	Round Shaft with Flat (No Gearhead)			Single	0.334	61x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.		100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.36º	5 mm	Incremental	1000 P/R	3-Channel	30 mA max.	5 VDC	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 20\|5 mm from Shaft End = 25\|10 mm from Shaft End = 34\|15 mm from Shaft End = 52	0 in. from Shaft End = 4.5\|0.2 in. from Shaft End = 5.6\|0.39 in. from Shaft End = 7.6\|0.59 in. from Shaft End = 11.7	10	2.25	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric	Line Driver	0.36	Not Equipped	No Gearhead
35		29	PKP546MN18A-R3J	1.65	42	72.5	2.85	0.44	62	High-Resolution	Round Shaft with Flat (No Gearhead)			Single	0.667	122x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.		100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.36º	5 mm	Incremental	1000 P/R	3-Channel	45 mA max.	5 VDC	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 20\|5 mm from Shaft End = 25\|10 mm from Shaft End = 34\|15 mm from Shaft End = 52	0 in. from Shaft End = 4.5\|0.2 in. from Shaft End = 5.6\|0.39 in. from Shaft End = 7.6\|0.59 in. from Shaft End = 11.7	10	2.25	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric	Voltage (TTL equivalent)	0.36	Not Equipped	No Gearhead
36		30	PKP546MN18A-R3JL	1.65	42	72.5	2.85	0.44	62	High-Resolution	Round Shaft with Flat (No Gearhead)			Single	0.667	122x10-7	These products do not contain substances that exceed the regulation values in the RoHS Directive.		100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.36º	5 mm	Incremental	1000 P/R	3-Channel	30 mA max.	5 VDC	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 20\|5 mm from Shaft End = 25\|10 mm from Shaft End = 34\|15 mm from Shaft End = 52	0 in. from Shaft End = 4.5\|0.2 in. from Shaft End = 5.6\|0.39 in. from Shaft End = 7.6\|0.59 in. from Shaft End = 11.7	10	2.25	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)	Flat Connector	5	1.8	Metric	Line Driver	0.36	Not Equipped	No Gearhead
