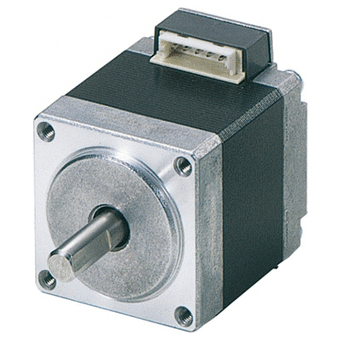

1.10 in. (28 mm) NEMA 11 PKP Series 5-Phase Stepper Motors

Manufacturer	Oriental Motor U.S.A. Corp.
Description	1.10 in. (28 mm) PKP Series 5-Phase Stepper Motor, PKP523N12A
Manufacturer Part Number	PKP523N12A
E-Shop link	https://catalog.orientalmotor.com/item/pkp-series-5-phase-stepper-motors/pk-series-28mm-5-phase-stepper-motors/pkp523n12a
Frame Size [in]	1.1
Frame Size [mm]	28
Motor Length [mm]	32
Motor Length [in.]	1.26
Holding Torque [N·m]	0.052
Holding Torque [oz-in]	7.3
Type	Standard
Shaft/Gear Type	Round Shaft with Flat (No Gearhead)
Shaft	Single
Rotor Inertia [oz-in²]	0.049
Rotor Inertia [kg·m²]	9x10-7
RoHS Compliant	Yes
Safety Standards	CE
Insulation Class
Insulation Resistance	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.
Dielectric Strength	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz
Ambient Humidity	85% or less (Non-Condensing)
Shaft Runout	0.05 mm (0.002 in.) T.I.R.
Concentricity	0.075 mm (0.003 in.) T.I.R.
Perpendicularity	0.075 mm (0.003 in.) T.I.R.

Basic Step Angle	0.72º
Encoder Type
Encoder Output
Encoder Resolution (P/R)
Output
Input Current (mA)
Input Voltage (V)
Motor Connection Type	Connector
Connection Type	New Pentagon (Bipolar)
Temperature Rise	Winding temperature rise 144ºF (80ºC) max.
Ambient Temperature Range	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)
Radial Load [N]	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52
Radial Load [lb]	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7
Axial Load [N]	5
Axial Load [lb]	1.1
Radial Play	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)
Axial Play	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)
Output Shaft Diameter	5 mm
Lead Wires	5
Current per Phase [A/phase]	1.2
Output Type
Step Angle [°]	0.72
Gear Type	No Gearhead
Output Shaft	Metric

CAD models

Request for quotation

Product selection

Index	CAD	Selector	Manufacturer Part Number	Frame Size [in]	Frame Size [mm]	Motor Length [mm]	Motor Length [in.]	Holding Torque [N·m]	Holding Torque [oz-in]	Type	Shaft/Gear Type	Shaft	Rotor Inertia [oz-in²]	Rotor Inertia [kg·m²]	RoHS Compliant	Safety Standards	Insulation Class	Insulation Resistance	Dielectric Strength	Ambient Humidity	Shaft Runout	Concentricity	Perpendicularity	Basic Step Angle	Encoder Type	Encoder Output	Encoder Resolution (P/R)	Output	Input Current (mA)	Input Voltage (V)	Motor Connection Type	Connection Type	Temperature Rise	Ambient Temperature Range	Radial Load [N]	Radial Load [lb]	Axial Load [N]	Axial Load [lb]	Radial Play	Axial Play	Output Shaft Diameter	Lead Wires	Current per Phase [A/phase]	Output Type	Step Angle [°]	Gear Type	Output Shaft
1	No CAD available	1	PKP523N12A	1.1	28	32	1.26	0.052	7.3	Standard	Round Shaft with Flat (No Gearhead)	Single	0.049	9x10-7	Yes	CE		100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º							Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	1.2		0.72	No Gearhead	Metric
2	No CAD available	12	PKP523N12B	1.1	28	32	1.26	0.052	7.3	Standard	Round Shaft with Flat (No Gearhead)	Double	0.049	9x10-7	Yes	CE		100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º							Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	1.2		0.72	No Gearhead	Metric
3	No CAD available	22	PKP525N12A	1.1	28	51.5	2.03	0.091	12.9	Standard	Round Shaft with Flat (No Gearhead)	Single	0.098	18x10-7	Yes	CE		100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º							Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	1.2		0.72	No Gearhead	Metric
4	No CAD available	23	PKP525N12B	1.1	28	51.5	2.03	0.091	12.9	Standard	Round Shaft with Flat (No Gearhead)	Double	0.098	18x10-7	Yes	CE		100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º							Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	1.2		0.72	No Gearhead	Metric
5		24	PKP523MN03A-R3J	1.1	28	47.5	1.87	0.042	5.95	High-Resolution	Round Shaft with Flat (No Gearhead)	Single	0.054	9.9x10-7	Yes		130 (B)	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.36º	Incremental	1000 P/R, Voltage (TTL equivalent)	1000	3-Channel A, B, Z	45 mA max.	5 ±10%	Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	0.35	Voltage (TTL equivalent)	0.36	No Gearhead	Metric
6		25	PKP523MN03A-R3JL	1.1	28	47.5	1.87	0.042	5.95	High-Resolution	Round Shaft with Flat (No Gearhead)	Single	0.054	9.9x10-7	Yes		130 (B)	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.36º	Incremental	1000 P/R, Line Driver	1000	3-Channel A, B, Z	30 mA max.	5 ±10%	Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	0.35	Line Driver	0.36	No Gearhead	Metric
7		26	PKP523MN07A-R3J	1.1	28	47.5	1.87	0.042	5.95	High-Resolution	Round Shaft with Flat (No Gearhead)	Single	0.054	9.9x10-7	Yes		130 (B)	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.36º	Incremental	1000 P/R, Voltage (TTL equivalent)	1000	3-Channel A, B, Z	45 mA max.	5 ±10%	Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	0.75	Voltage (TTL equivalent)	0.36	No Gearhead	Metric
8		27	PKP523MN07A-R3JL	1.1	28	47.5	1.87	0.042	5.95	High-Resolution	Round Shaft with Flat (No Gearhead)	Single	0.054	9.9x10-7	Yes		130 (B)	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.36º	Incremental	1000 P/R, Line Driver	1000	3-Channel A, B, Z	30 mA max.	5 ±10%	Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	0.75	Line Driver	0.36	No Gearhead	Metric
9		28	PKP523N03A-R3G	1.1	28	47.5	1.87	0.048	6.80	Standard	Round Shaft with Flat (No Gearhead)	Single	0.054	9.9x10-7	Yes		130 (B)	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	Incremental	500 P/R, Voltage (TTL equivalent)	500	3-Channel A, B, Z	45 mA max.	5 ±10%	Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	0.35	Voltage (TTL equivalent)	0.72	No Gearhead	Metric
10		2	PKP523N03A-R3GL	1.1	28	47.5	1.87	0.048	6.80	Standard	Round Shaft with Flat (No Gearhead)	Single	0.054	9.9x10-7	Yes		130 (B)	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	Incremental	500 P/R, Line Driver	500	3-Channel A, B, Z	30 mA max.	5 ±10%	Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	0.35	Line Driver	0.72	No Gearhead	Metric
11		3	PKP523N07A-R3G	1.1	28	47.5	1.87	0.048	6.80	Standard	Round Shaft with Flat (No Gearhead)	Single	0.054	9.9x10-7	Yes		130 (B)	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	Incremental	500 P/R, Voltage (TTL equivalent)	500	3-Channel A, B, Z	45 mA max.	5 ±10%	Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	0.75	Voltage (TTL equivalent)	0.72	No Gearhead	Metric
12		4	PKP523N07A-R3GL	1.1	28	47.5	1.87	0.048	6.80	Standard	Round Shaft with Flat (No Gearhead)	Single	0.054	9.9x10-7	Yes		130 (B)	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	Incremental	500 P/R, Line Driver	500	3-Channel A, B, Z	30 mA max.	5 ±10%	Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	0.75	Line Driver	0.72	No Gearhead	Metric
13		5	PKP523N12A-R3G	1.1	28	47.5	1.87	0.052	7.30	Standard	Round Shaft with Flat (No Gearhead)	Single	0.054	9.9x10-7	Yes		130 (B)	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	Incremental	500 P/R, Voltage (TTL equivalent)	500	3-Channel A, B, Z	45 mA max.	5 ±10%	Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	1.2	Voltage (TTL equivalent)	0.72	No Gearhead	Metric
14		6	PKP523N12A-R3GL	1.1	28	47.5	1.87	0.052	7.30	Standard	Round Shaft with Flat (No Gearhead)	Single	0.054	9.9x10-7	Yes		130 (B)	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	Incremental	500 P/R, Line Driver	500	3-Channel A, B, Z	30 mA max.	5 ±10%	Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	1.2	Line Driver	0.72	No Gearhead	Metric
15		7	PKP524MN03A-R3J	1.1	28	55.5	2.19	0.061	8.64	High-Resolution	Round Shaft with Flat (No Gearhead)	Single	0.077	14x10-7	Yes		130 (B)	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.36º	Incremental	1000 P/R, Voltage (TTL equivalent)	1000	3-Channel A, B, Z	45 mA max.	5 ±10%	Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	0.35	Voltage (TTL equivalent)	0.36	No Gearhead	Metric
16		8	PKP524MN03A-R3JL	1.1	28	55.5	2.19	0.061	8.64	High-Resolution	Round Shaft with Flat (No Gearhead)	Single	0.077	14x10-7	Yes		130 (B)	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.36º	Incremental	1000 P/R, Line Driver	1000	3-Channel A, B, Z	30 mA max.	5 ±10%	Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	0.35	Line Driver	0.36	No Gearhead	Metric
17		9	PKP524MN07A-R3J	1.1	28	55.5	2.19	0.061	8.64	High-Resolution	Round Shaft with Flat (No Gearhead)	Single	0.077	14x10-7	Yes		130 (B)	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.36º	Incremental	1000 P/R, Voltage (TTL equivalent)	1000	3-Channel A, B, Z	45 mA max.	5 ±10%	Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	0.75	Voltage (TTL equivalent)	0.36	No Gearhead	Metric
18		10	PKP524MN07A-R3JL	1.1	28	55.5	2.19	0.061	8.64	High-Resolution	Round Shaft with Flat (No Gearhead)	Single	0.077	14x10-7	Yes		130 (B)	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.36º	Incremental	1000 P/R, Line Driver	1000	3-Channel A, B, Z	30 mA max.	5 ±10%	Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	0.75	Line Driver	0.36	No Gearhead	Metric
19		11	PKP525MN03A-R3J	1.1	28	67	2.64	0.09	12.75	High-Resolution	Round Shaft with Flat (No Gearhead)	Single	0.109	20x10-7	Yes		130 (B)	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.36º	Incremental	1000 P/R, Voltage (TTL equivalent)	1000	3-Channel A, B, Z	45 mA max.	5 ±10%	Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	0.35	Voltage (TTL equivalent)	0.36	No Gearhead	Metric
20		13	PKP525MN03A-R3JL	1.1	28	67	2.64	0.09	12.75	High-Resolution	Round Shaft with Flat (No Gearhead)	Single	0.109	20x10-7	Yes		130 (B)	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.36º	Incremental	1000 P/R, Line Driver	1000	3-Channel A, B, Z	30 mA max.	5 ±10%	Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	0.35	Line Driver	0.36	No Gearhead	Metric
21		14	PKP525MN07A-R3J	1.1	28	67	2.64	0.09	12.75	High-Resolution	Round Shaft with Flat (No Gearhead)	Single	0.109	20x10-7	Yes		130 (B)	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.36º	Incremental	1000 P/R, Voltage (TTL equivalent)	1000	3-Channel A, B, Z	45 mA max.	5 ±10%	Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	0.75	Voltage (TTL equivalent)	0.36	No Gearhead	Metric
22		15	PKP525MN07A-R3JL	1.1	28	67	2.64	0.09	12.75	High-Resolution	Round Shaft with Flat (No Gearhead)	Single	0.109	20x10-7	Yes		130 (B)	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.36º	Incremental	1000 P/R, Line Driver	1000	3-Channel A, B, Z	30 mA max.	5 ±10%	Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	0.75	Line Driver	0.36	No Gearhead	Metric
23		16	PKP525N03A-R3G	1.1	28	67	2.64	0.078	11.05	Standard	Round Shaft with Flat (No Gearhead)	Single	0.104	19x10-7	Yes		130 (B)	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	Incremental	500 P/R, Voltage (TTL equivalent)	500	3-Channel A, B, Z	45 mA max.	5 ±10%	Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	0.35	Voltage (TTL equivalent)	0.72	No Gearhead	Metric
24		17	PKP525N03A-R3GL	1.1	28	67	2.64	0.078	11.05	Standard	Round Shaft with Flat (No Gearhead)	Single	0.104	19x10-7	Yes		130 (B)	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	Incremental	500 P/R, Line Driver	500	3-Channel A, B, Z	30 mA max.	5 ±10%	Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	0.35	Line Driver	0.72	No Gearhead	Metric
25		18	PKP525N07A-R3G	1.1	28	67	2.64	0.078	11.05	Standard	Round Shaft with Flat (No Gearhead)	Single	0.104	19x10-7	Yes		130 (B)	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	Incremental	500 P/R, Voltage (TTL equivalent)	500	3-Channel A, B, Z	45 mA max.	5 ±10%	Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	0.75	Voltage (TTL equivalent)	0.72	No Gearhead	Metric
26		19	PKP525N07A-R3GL	1.1	28	67	2.64	0.078	11.05	Standard	Round Shaft with Flat (No Gearhead)	Single	0.104	19x10-7	Yes		130 (B)	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	Incremental	500 P/R, Line Driver	500	3-Channel A, B, Z	30 mA max.	5 ±10%	Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	0.75	Line Driver	0.72	No Gearhead	Metric
27		20	PKP525N12A-R3G	1.1	28	67	2.64	0.091	12.90	Standard	Round Shaft with Flat (No Gearhead)	Single	0.104	19x10-7	Yes		130 (B)	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	Incremental	500 P/R, Voltage (TTL equivalent)	500	3-Channel A, B, Z	45 mA max.	5 ±10%	Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	1.2	Voltage (TTL equivalent)	0.72	No Gearhead	Metric
28		21	PKP525N12A-R3GL	1.1	28	67	2.64	0.091	12.90	Standard	Round Shaft with Flat (No Gearhead)	Single	0.104	19x10-7	Yes		130 (B)	100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.	No abnormalities are observed, even when applying voltage between the windings and the case for 1 minute under normal ambient temperature and humidity with the following conditions. 0.5 kVAC 50/60 Hz	85% or less (Non-Condensing)	0.05 mm (0.002 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.075 mm (0.003 in.) T.I.R.	0.72º	Incremental	500 P/R, Line Driver	500	3-Channel A, B, Z	30 mA max.	5 ±10%	Connector	New Pentagon (Bipolar)	Winding temperature rise 144ºF (80ºC) max.	14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)	0 mm from Shaft End = 25\|5 mm from Shaft End = 34\|10 mm from Shaft End = 52	0 in. from Shaft End = 5.6\|0.2 in. from Shaft End = 7.6\|0.39 in. from Shaft End = 11.7	5	1.1	0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)	0.075 mm (0.003 in.) maximum of 2.5 N (0.59 lb.)	5 mm	5	1.2	Line Driver	0.72	No Gearhead	Metric
