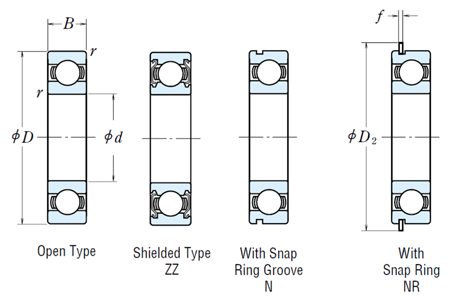

Single row deep groove ball bearings - Shielded (ZZ)

Manufacturer	NSK
Description	Single row deep groove ball bearings - Shielded - 6800ZZ
Part number	6800ZZ
Mass	0.005 kg
Inner diameter	10 mm
Outer diameter	19 mm

Radial load	1720 N
Radial load2	840 N
Radial load3	175
Radial load4	86
Rotary speed (greased)	34000 rpm

CAD models

Request for quotation

Product selection

Level of detail

Index	Selector	d (mm)	D (mm)	B (mm)	r min (mm)	Cr (N)	C0r (N)	Cr (kgf)	C0r (kgf)	fo	Speed limit - Grease (rpm)	Bearing part number	Mass (kg)
1	1	10	19	5	0.3	1720	840	175	86	14.8	34000	6800ZZ	0.005
2	2	10	22	6	0.3	2700	1270	275	129	14	32000	6900ZZ	0.009
3	3	10	26	8	0.3	4550	1970	465	201	12.4	30000	6000ZZ	0.018
4	4	10	30	9	0.6	5100	2390	520	244	13.2	24000	6200ZZ	0.032
5	5	10	35	11	0.6	8100	3450	825	350	11.2	22000	6300ZZ	0.052
6	6	12	21	5	0.3	1920	1040	195	106	15.3	32000	6801ZZ	0.006
7	7	12	24	6	0.3	2890	1460	295	149	14.5	30000	6901ZZ	0.01
8	9	12	28	8	0.3	5100	2370	520	241	13	28000	6001ZZ	0.022
9	10	12	32	10	0.6	6800	3050	695	310	12.3	22000	6201ZZ	0.037
10	11	12	37	12	1	9700	4200	990	425	11.1	20000	6301ZZ	0.06
11	12	15	24	5	0.3	2070	1260	212	128	15.8	28000	6802ZZ	0.007
12	13	15	28	7	0.3	4350	2260	440	230	14.3	26000	6902ZZ	0.015
13	15	15	32	9	0.3	5600	2830	570	289	13.9	24000	6002ZZ	0.031
14	16	15	35	11	0.6	7650	3750	780	380	13.2	20000	6202ZZ	0.045
15	17	15	42	13	1	11400	5450	1170	555	12.3	17000	6302ZZ	0.083
16	18	17	26	5	0.3	2630	1570	268	160	15.7	26000	6803ZZ	0.007
17	19	17	30	7	0.3	4600	2550	470	260	14.7	24000	6903ZZ	0.017
18	21	17	35	10	0.3	6000	3250	610	330	14.4	22000	6003ZZ	0.041
19	22	17	40	12	0.6	9550	4800	975	490	13.2	17000	6203ZZ	0.067
20	23	17	47	14	1	13600	6650	1390	675	12.4	15000	6303ZZ	0.113
21	24	20	32	7	0.3	4000	2470	410	252	15.5	22000	6804ZZ	0.017
22	25	20	37	9	0.3	6400	3700	650	375	14.7	19000	6904ZZ	0.037
23	27	20	42	12	0.6	9400	5000	955	510	13.8	18000	6004ZZ	0.068
24	28	20	47	14	1	12800	6600	1300	670	13.1	15000	6204ZZ	0.107
25	29	20	52	15	1.1	15900	7900	1620	805	12.4	14000	6304ZZ	0.145
26	30	22	44	12	0.6	9400	5050	960	515	14	17000	60/22ZZ	0.074
27	31	22	50	14	1	12900	6800	1320	695	13.5	14000	62/22ZZ	0.119
28	32	22	56	16	1.1	18400	9250	1870	940	12.4	13000	63/22ZZ	0.179
29	33	25	37	7	0.3	4500	3150	455	320	16.1	18000	6805ZZ	0.021
30	34	25	42	9	0.3	7050	4550	715	460	15.4	16000	6905ZZ	0.042
31	36	25	47	12	0.6	10100	5850	1030	595	14.5	15000	6005ZZ	0.079
32	37	25	52	15	1	14000	7850	1430	800	13.9	13000	6205ZZ	0.129
33	38	25	62	17	1.1	20600	11200	2100	1150	13.2	11000	6305ZZ	0.235
34	39	28	52	12	0.6	12500	7400	1270	755	14.5	14000	60/28ZZ	0.096
35	40	28	58	16	1	16600	9500	1700	970	13.9	12000	62/28ZZ	0.175
36	41	28	68	18	1.1	26700	14000	2730	1430	12.4	10000	63/28ZZ	0.287
37	42	30	42	7	0.3	4700	3650	480	370	16.4	15000	6806ZZ	0.024
38	43	30	47	9	0.3	7250	5000	740	510	15.8	14000	6906ZZ	0.052
39	45	30	55	13	1	13200	8300	1350	845	14.7	13000	6006ZZ	0.116
40	46	30	62	16	1	19500	11300	1980	1150	13.8	11000	6206ZZ	0.199
41	47	30	72	19	1.1	26700	15000	2720	1530	13.3	9500	6306ZZ	0.345
42	48	32	58	13	1	15100	9150	1530	935	14.5	12000	60/32ZZ	0.122
43	49	32	65	17	1	20700	11600	2120	1190	13.6	10000	62/32ZZ	0.225
44	50	32	75	20	1.1	29900	17000	3050	1730	13.2	9000	63/32ZZ	0.389
45	51	35	47	7	0.3	4900	4100	500	420	16.7	14000	6807ZZ	0.027
46	52	35	55	10	0.6	10600	7250	1080	740	15.5	12000	6907ZZ	0.075
47	54	35	62	14	1	16000	10300	1630	1050	14.8	11000	6007ZZ	0.151
48	55	35	72	17	1.1	25700	15300	2620	1560	13.8	9500	6207ZZ	0.284
49	56	35	80	21	1.5	33500	19200	3400	1960	13.2	8500	6307ZZ	0.464
50	57	40	52	7	0.3	6350	5550	650	565	17	12000	6808ZZ	0.031
51	58	40	62	12	0.6	13700	10000	1390	1020	15.7	11000	6908ZZ	0.112
52	60	40	68	15	1	16800	11500	1710	1180	15.3	10000	6008ZZ	0.19
53	61	40	80	18	1.1	29100	17900	2970	1820	14	8500	6208ZZ	0.366
54	62	40	90	23	1.5	40500	24000	4150	2450	13.2	7500	6308ZZ	0.636
55	63	45	58	7	0.3	6600	6150	670	625	17.2	11000	6809ZZ	0.038
56	64	45	68	12	0.6	14100	10900	1440	1110	15.9	9500	6909ZZ	0.126
57	66	45	75	16	1	20900	15200	2140	1550	15.3	9000	6009ZZ	0.241
58	67	45	85	19	1.1	31500	20400	3200	2080	14.4	7500	6209ZZ	0.42
59	68	45	100	25	1.5	53000	32000	5400	3250	13.1	6700	6309ZZ	0.829
60	69	50	65	7	0.3	6400	6200	655	635	17.2	9500	6810ZZ	0.05
61	70	50	72	12	0.6	14500	11700	1480	1200	16.1	9000	6910ZZ	0.135
62	72	50	80	16	1	21800	16600	2220	1700	15.6	8500	6010ZZ	0.261
63	73	50	90	20	1.1	35000	23200	3600	2370	14.4	7100	6210ZZ	0.459
64	74	50	110	27	2	62000	38500	6300	3900	13.2	6000	6310ZZ	1.06
65	75	55	72	9	0.3	8800	8500	900	865	17	8500	6811ZZ	0.081
66	76	55	80	13	1	16000	13300	1630	1350	16.2	8000	6911ZZ	0.189
67	78	55	90	18	1.1	28300	21200	2880	2170	15.3	7500	6011ZZ	0.381
68	79	55	100	21	1.5	43500	29300	4450	2980	14.3	6300	6211ZZ	0.619
69	80	55	120	29	2	71500	44500	7300	4550	13.1	5600	6311ZZ	1.37
70	81	60	78	10	0.3	11500	10900	1170	1120	16.9	8000	6812ZZ	0.103
71	82	60	85	13	1	19400	16300	1980	1660	16.2	7500	6912ZZ	0.192
72	84	60	95	18	1.1	29500	23200	3000	2370	15.6	7100	6012ZZ	0.412
73	85	60	110	22	1.5	52500	36000	5350	3700	14.3	5600	6212ZZ	0.783
74	86	60	130	31	2.1	82000	52000	8350	5300	13.1	5300	6312ZZ	1.72
75	87	65	85	10	0.6	11900	12100	1220	1230	17	7500	6813ZZ	0.128
76	88	65	90	13	1	17400	16100	1770	1640	16.6	7100	6913ZZ	0.218
77	90	65	100	18	1.1	30500	25200	3100	2570	15.8	6700	6013ZZ	0.439
78	91	65	120	23	1.5	57500	40000	5850	4100	14.4	5300	6213ZZ	1
79	92	65	140	33	2.1	92500	60000	9450	6100	13.2	4800	6313ZZ	2.11
80	93	70	90	10	0.6	12100	12700	1230	1300	17.2	6700	6814ZZ	0.134
81	94	70	100	16	1	23700	21200	2420	2160	16.3	6300	6914ZZ	0.349
82	96	70	110	20	1.1	38000	31000	3900	3150	15.6	6000	6014ZZ	0.608
83	97	70	125	24	1.5	62000	44000	6350	4500	14.5	5000	6214ZZ	1.09
84	98	70	150	35	2.1	104000	68000	10600	6950	13.2	4500	6314ZZ	2.57
85	99	75	95	10	0.6	12500	13900	1280	1410	17.3	6300	6815ZZ	0.149
86	100	75	105	16	1	24400	22600	2480	2300	16.5	6000	6915ZZ	0.364
87	102	75	115	20	1.1	39500	33500	4050	3400	15.8	5600	6015ZZ	0.649
88	103	75	130	25	1.5	66000	49500	6750	5050	14.7	4800	6215ZZ	1.19
89	104	75	160	37	2.1	113000	77000	11600	7850	13.2	4300	6315ZZ	3.08
90	105	80	100	10	0.6	12700	14500	1290	1470	17.4	6000	6816ZZ	0.151
91	106	80	110	16	1	25000	24000	2540	2450	16.6	5600	6916ZZ	0.391
92	108	80	125	22	1.1	47500	40000	4850	4050	15.6	5300	6016ZZ	0.872
93	109	80	140	26	2	72500	53000	7400	5400	14.6	4500	6216ZZ	1.42
94	110	80	170	39	2.1	123000	86500	12500	8850	13.3	4000	6316ZZ	3.67
95	111	85	110	13	1	18700	20000	1910	2040	17.1	5600	6817ZZ	0.263
96	112	85	120	18	1.1	32000	29600	3250	3000	16.4	5300	6917ZZ	0.55
97	114	85	130	22	1.1	49500	43000	5050	4400	15.8	5000	6017ZZ	0.918
98	115	85	150	28	2	84000	62000	8550	6300	14.5	4300	6217ZZ	1.76
99	116	85	180	41	3	133000	97000	13500	9850	13.3	3800	6317ZZ	4.28
100	117	90	115	13	1	19000	21000	1940	2140	17.2	5300	6818ZZ	0.276
101	118	90	125	18	1.1	33000	31500	3350	3200	16.5	5000	6918ZZ	0.585
102	120	90	140	24	1.5	58000	50000	5950	5050	15.6	4800	6018ZZ	1.19
103	121	90	160	30	2	96000	71500	9800	7300	14.5	4000	6218ZZ	2.18
104	122	90	190	43	3	143000	107000	14500	11000	13.3	3600	6318ZZ	4.98
105	123	95	120	13	1	19300	22000	1970	2240	17.2	5000	6819ZZ	0.297
106	124	95	130	18	1.1	33500	33500	3450	3400	16.6	4800	6919ZZ	0.601
107	126	95	145	24	1.5	60500	54000	6150	5500	15.8	4500	6019ZZ	1.23
108	127	95	170	32	2.1	109000	82000	11100	8350	14.4	3800	6219ZZ	2.64
109	128	95	200	45	3	153000	119000	15600	12100	13.3	3000	6319ZZ	5.76
110	129	100	125	13	1	19600	23000	2000	2340	17.3	4800	6820ZZ	0.31
111	130	100	140	20	1.1	43000	42000	4350	4250	16.4	4500	6920ZZ	0.828
112	132	100	150	24	1.5	60000	54000	6150	5550	15.9	4300	6020ZZ	1.29
113	133	100	180	34	2.1	122000	93000	12500	9500	14.4	3600	6220ZZ	3.17
114	134	100	215	47	3	173000	141000	17700	14400	13.2	2800	6320ZZ	7.04
115	135	105	130	13	1	19800	23900	2020	2440	17.4	4800	6821ZZ	0.324
116	136	105	145	20	1.1	42500	42000	4300	4300	16.5	4300	6921ZZ	0.856
117	138	105	160	26	2	72500	66000	7400	6700	15.8	4000	6021ZZ	1.58
118	139	105	190	36	2.1	133000	105000	13600	10700	14.4	3400	6221ZZ	3.79
119	140	105	225	49	3	184000	154000	18700	15700	13.2	2600	6321ZZ	8.09
120	141	110	140	16	1	28100	32500	2860	3350	17.1	4300	6822ZZ	0.497
121	142	110	150	20	1.1	43500	44500	4450	4550	16.6	4300	6922ZZ	0.893
122	144	110	170	28	2	85000	73000	8650	7450	15.5	3800	6022ZZ	1.94
123	145	110	200	38	2.1	144000	117000	14700	11900	14.3	2800	6222ZZ	4.45
124	146	110	240	50	3	205000	179000	20900	18300	13.2	2400	6322ZZ	9.51
125	147	120	150	16	1	28900	35500	2950	3650	17.3	4000	6824ZZ	0.537
126	148	120	165	22	1.1	53000	54000	5400	5500	16.5	3800	6924ZZ	1.21
127	150	120	180	28	2	88000	80000	9000	8150	15.7	3600	6024ZZ	2.08
128	151	120	215	40	2.1	155000	131000	15800	13400	14.4	2600	6224ZZ	5.29
129	152	120	260	55	3	207000	185000	21100	18800	13.5	2200	6324ZZ	12.5
130	153	130	165	18	1.1	37000	44000	3750	4450	17.1	3600	6826ZZ	0.758
131	154	130	180	24	1.5	65000	67500	6650	6850	16.5	3400	6926ZZ	1.57
132	156	130	200	33	2	106000	101000	10800	10300	15.8	3000	6026ZZ	3.26
133	157	130	230	40	3	167000	146000	17000	14900	14.5	2400	6226ZZ	5.96
134	158	130	280	58	4	229000	214000	23400	21800	13.6	2200	6326ZZ	15.2
135	159	140	175	18	1.1	38500	48000	3900	4850	17.3	3400	6828ZZ	0.832
136	160	140	190	24	1.5	66500	72000	6800	7300	16.6	3200	6928ZZ	1.67
137	162	140	210	33	2	110000	109000	11200	11100	16	2800	6028ZZ	3.48
138	163	140	250	42	3	166000	150000	17000	15300	14.9	2200	6228ZZ	7.68
139	164	140	300	62	4	253000	246000	25800	25100	13.6	2000	6328ZZ	18.5
140	165	150	190	20	1.1	47500	58500	4850	5950	17.1	3200	6830ZZ	1.15
141	166	150	210	28	2	85000	90500	8650	9200	16.5	2600	6930ZZ	3.01
142	168	150	225	35	2.1	126000	126000	12800	12800	15.9	2600	6030ZZ	4.24
143	169	150	270	45	3	176000	168000	18000	17100	15.1	2000	6230ZZ	10
144	170	150	320	65	4	274000	284000	28000	28900	13.9	1800	6330ZZ	22.7
145	171	160	200	20	1.1	48500	61000	4950	6250	17.2	2600	6832ZZ	1.23
146	172	160	220	28	2	87000	96000	8850	9800	16.6	2600	6932ZZ	2.71
147	174	160	240	38	2.1	137000	135000	13900	13800	15.9	2400	6032ZZ	5.15
148	175	160	290	48	3	185000	186000	18900	19000	15.4	1900	6232ZZ	12.8
149	176	160	340	68	4	278000	287000	28300	29200	13.9	1700	6332ZZ	26.2
150	177	170	215	22	1.1	60000	75000	6100	7650	17.1	2600	6834ZZ	1.86
151	178	170	230	28	2	86000	97000	8750	9850	16.7	2400	6934ZZ	3.34
152	180	170	260	42	2.1	161000	161000	16400	16400	15.8	2200	6034ZZ	6.89
153	181	170	310	52	4	212000	224000	21700	22800	15.3	1800	6234ZZ	15.8
154	184	180	250	33	2	119000	128000	12100	13100	16.4	2200	6936ZZ	4.16
155	186	180	280	46	2.1	180000	185000	18400	18800	15.6	2000	6036ZZ	8.88
156	187	180	320	52	4	227000	241000	23200	24600	15.1	1700	6236ZZ	15.9
157	192	190	290	46	2.1	188000	201000	19200	20500	15.8	2000	6038ZZ	9.39
158	193	190	340	55	4	255000	282000	26000	28700	15	1600	6238ZZ	22.3
159	196	200	280	38	2.1	143000	158000	14600	16100	16.4	2000	6940ZZ	7.28
160	198	200	310	51	2.1	207000	226000	21100	23000	15.6	1900	6040ZZ	12
161	199	200	360	58	4	269000	310000	27400	31500	15.2	1500	6240ZZ	26.7
162	201	220	270	24	1.5	76500	107000	7800	10900	17.4	1900	6844ZZ	2.9
163	202	220	300	38	2.1	146000	169000	14900	17300	16.6	1800	6944ZZ	7.88
164	204	220	340	56	3	235000	271000	24000	27600	15.6	1700	6044ZZ	18.6
165	208	240	320	38	2.1	154000	190000	15700	19400	16.8	1700	6948ZZ	8.49

Option 1

Standard

Option 2

Documentation

NSK Product Finder

Rolling_Bearings_EN.pdf

DeepGroove_EN.pdf

Contact the supplier

NSK

NSK Europe - One of the world’s leading manufacturers of rolling bearings, linear technology, automotive components & steering systems, we offer standard and customised products to key industrial sectors.

NSK Deutschland GmbH

NSK Deutschland GmbH
Harkortstrasse 15
40880 Ratingen
Germany
Website Holland
Denmark website
Sweden website
Finland website
Norway website
Korea website
info-de@nsk.com
NSK France S.A.S.

NSK France S.A.S.
Quartier de l’Europe
2, Rue Georges Guynemer
78283 Guyancourt Cedex
France
Website France
Website Greece
info-fr@nsk.com
NSK Italia S.p.A.

NSK Italia S.p.A.
Via Garibaldi 215
Garbagnate
20024 Milanese
Italy
www.nskeurope.it
info-it@nsk.com
NSK Spain, S.A.

NSK Spain, S.A.
C/ Tarragona, 161 Cuerpo Bajo
2a Planta
08014 Barcelona
Spain
Website Portugal
info-es@nsk.com

NSK UK Ltd.

NSK UK Ltd.
Northern Road, Newark
NG24 2JF Nottinghamshire
United Kingdom of Great Britain and Northern Ireland
www.nskeurope.com
info-uk@nsk.com
NSK Polska Sp.z o.o.

NSK Polska Sp.z o.o.
Migdałowa 4/73
02-796 Warszawa
Poland
Website Poland
Website Czechia
Website Hungary
Website Slovenia
Website Slovakia
Website Bulgaria
Website Serbia
info-pl@nsk.com
NSK Polska Sp. z o.o. Russian Branch

NSK Polska Sp. z o.o. Russian Branch
Office I 703, Bldg 29,
18th Line of Vasilievskiy Ostrov,
199178 San Petersburg
Poland
www.nskeurope.ru
info-ru@nsk.com
NSK Rulmanlari Orta Dog˘ u Tic. Ltd. S¸ ti

NSK Rulmanlari Orta Dog˘ u Tic. Ltd. S¸ ti
19 Mayis Mah. Atatürk Cad.
Ulya Engın I˙s¸ Merkezı No: 68 Kat. 6
P.K.: 34734 Kozyatag˘ i - I˙stanbul
Turkey
www.nskeurope.com.tr
turkey@nsk.com
