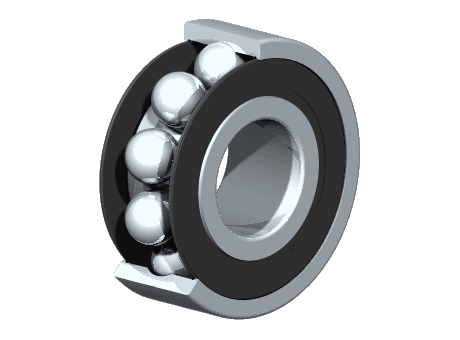

Single row ball bearings - Miniature - With contact seals (DD)

Manufacturer	NSK
Description	Single row ball bearings - Miniatures - Sealed - 695DD
Part number	695DD
Mass	2.5 g
Inner diameter	5 mm
Outer diameter	13 mm

Radial load	1080 N
Radial load2	430 N
Radial load3	110
Radial load4	44
Rotary speed (greased)	40000 rpm

CAD models

Request for quotation

Product selection

Level of detail

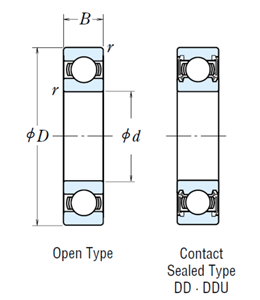

Index	Selector	d (mm)	D (mm)	B (mm)	r min (mm)	Cr (N)	C0r (N)	Cr (kgf)	C0r (kgf)	Speed limit - Grease (rpm)	Bearing part number	Mass (g)
1	38	5	13	4	0.2	1080	430	110	44	40000	695DD	2.5
2	39	5	14	5	0.2	1330	505	135	52	38000	605DD	3.48
3	40	5	16	5	0.3	1730	670	177	68	32000	625DD	4.86
4	41	5	19	6	0.3	2340	885	238	90	30000	635DD	8.34
5	43	6	12	4	0.15	715	292	73	30	40000	MR126DD	1.74
6	44	6	13	5	0.15	1080	440	110	45	38000	686DD	2.69
7	45	6	15	5	0.2	1730	670	177	68	36000	696DD	3.72
8	46	6	17	6	0.3	2260	835	231	85	34000	606DD	6.08
9	47	6	19	6	0.3	2340	885	238	90	30000	626DD	7.94
10	48	6	22	7	0.3	3300	1370	335	140	28000	636DD	14
11	51	7	14	5	0.15	1170	510	120	52	34000	687DD	2.97
12	52	7	17	5	0.3	1610	710	164	73	28000	697DD	5.12
13	53	7	19	6	0.3	2340	885	238	90	32000	607DD	7.51
14	54	7	22	7	0.3	3300	1370	335	140	28000	627DD	12.9
15	55	7	26	9	0.3	4550	1970	465	201	22000	637DD	25
16	57	8	14	4	0.15	820	385	83	39	32000	MR148DD	2.16
17	58	8	16	5	0.2	1610	710	164	73	28000	688DD	4.02
18	59	8	19	6	0.3	2240	910	228	93	28000	698DD	7.18
19	60	8	22	7	0.3	3300	1370	335	140	28000	608DD	12.2
20	61	8	24	8	0.3	3350	1430	340	146	24000	628DD	17.4
21	62	8	28	9	0.3	4550	1970	465	201	22000	638DD	28.6
22	63	9	17	5	0.2	1330	665	136	68	24000	689DD	4.43
23	64	9	20	6	0.3	1720	840	175	86	24000	699DD	8.33
24	65	9	24	7	0.3	3350	1430	340	146	24000	609DD	14.7
25	66	9	26	8	0.6	4550	1970	465	201	22000	629DD	19.3
