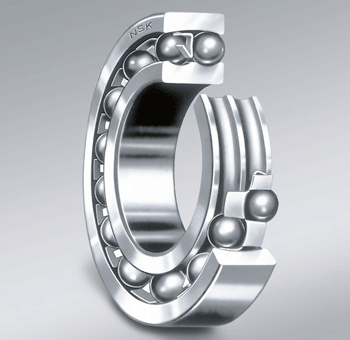

Self-aligning ball bearings, with cylindrical bore (open)

Manufacturer	NSK
Description	Self-aligning ball bearings, with cylindrical bore (open) -1200TN
Part number	1200TN
Mass	0.034 kg
Inner diameter	10 mm

Outer diameter	30 mm
Radial load	5500 N
Radial load2	1530 N
Rotary speed (greased)	24000 rpm
Angular speed (oiled)	30000 rpm

CAD models

Request for quotation

Product selection

Level of detail

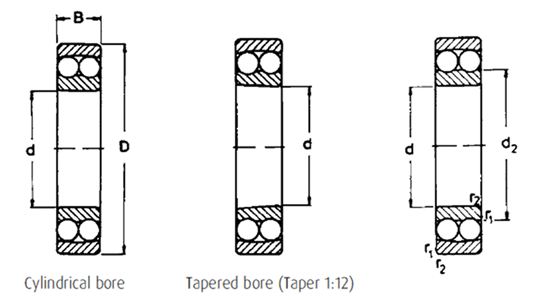

Index	Selector	d (mm)	D (mm)	B (mm)	r1.2 min (mm)	Bearing part number	Cr (N)	C0r (N)	Speed limit - Grease (rpm)	Speed limit - Oil (rpm)	Mass (kg)
1	6	10	30	9	0.6	1200TN	5500	1530	24000	30000	0.034
2	7	10	30	14	0.6	2200TN	7200	2040	24000	30000	0.047
3	10	12	32	10	0.6	1201TN	5600	1270	24000	30000	0.04
4	11	12	32	14	0.6	2201ETN	9000	1960	20000	26000	0.051
5	12	12	37	12	1	1301TN	9500	2160	18000	22000	0.067
6	14	15	35	11	0.6	1202TN	7500	1760	20000	26000	0.049
7	15	15	35	14	0.6	2202ETN	9150	2080	19000	24000	0.06
8	16	15	42	13	1	1302TN	9500	2280	17000	20000	0.094
9	17	15	42	17	1	2302ETN	12000	2900	16000	19000	0.11
10	18	17	40	12	0.6	1203TN	8000	2040	18000	22000	0.073
11	19	17	40	16	0.6	2203ETN	11400	2750	16000	19000	0.088
12	20	17	47	14	1	1303TN	12500	3200	15000	18000	0.13
13	21	17	47	19	1	2303TN	14300	3550	14000	17000	0.16
14	22	20	47	14	1	1204TN	10000	2650	15000	18000	0.12
15	23	20	47	18	1	2204ETN	14300	3550	14000	17000	0.14
16	24	20	52	15	1.1	1304TN	12500	3350	13000	16000	0.16
17	25	20	52	21	1.1	2304J	18000	4650	13000	16000	0.21
18	26	25	52	15	1	1205TN	12200	3350	13000	16000	0.14
19	27	25	52	18	1	2205ETN	17000	4400	12000	15000	0.16
20	28	25	62	17	1.1	1305TN	18000	5000	11000	14000	0.26
21	29	25	62	24	1.1	2305TN	24500	6550	10000	13000	0.34
22	30	30	62	16	1	1206TN	15600	4650	11000	14000	0.22
23	31	30	62	20	1	2206ETN	25500	6950	9500	12000	0.26
24	32	30	72	19	1.1	1306TN	21200	6300	9000	11000	0.39
25	33	30	72	27	1.1	2306TN	31500	8650	8500	10000	0.5
26	34	35	72	17	1.1	1207TN	16000	5200	9500	12000	0.32
27	35	35	72	23	1.1	2207ETN	32000	9000	8000	9500	0.4
28	36	35	80	21	1.5	1307TN	25000	8000	8000	9500	0.51
29	37	35	80	31	1.5	2307TN	39000	11200	7500	9000	0.68
30	38	40	80	18	1.1	1208TN	19300	6550	8500	10000	0.42
31	39	40	80	23	1.1	2208ETN	31500	9500	7500	9000	0.51
32	40	40	90	23	1.5	1308TN	29000	9650	7000	8500	0.72
33	41	40	90	33	1.5	2308TN	45000	13400	6700	8000	0.93
34	42	45	85	19	1.1	1209TN	22000	7350	7500	9000	0.47
35	43	45	85	23	1.1	2209ETN	28000	9000	7000	8500	0.55
36	44	45	100	25	1.5	1309TN	38000	12900	6300	7500	0.96
37	45	45	100	36	1.5	2309TN	54000	16300	6000	7000	1.25
38	46	50	90	20	1.1	1210TN	22800	8150	7000	8500	0.53
39	47	50	90	23	1.1	2210ETN	28000	9500	6700	8000	0.59
40	48	50	110	27	2	1310TN	41500	14300	5600	6700	1.2
41	49	50	110	40	2	2310TN	64000	20000	5300	6300	1.65
42	50	55	100	21	1.5	1211TN	27000	10000	6300	7500	0.71
43	51	55	100	25	1.5	2211ETN	39000	12700	5600	6700	0.81
44	52	55	120	29	2	1311TN	51000	18000	5000	6000	1.6
45	53	55	120	43	2	2311TN	75000	23600	4800	5600	2.1
46	54	60	110	22	1.5	1212TN	30000	11600	5600	6700	0.9
47	55	60	110	28	1.5	2212ETN	47500	16600	5300	6300	1.1
48	56	60	130	31	2	1312J	57500	20800	4800	5600	1.95
49	57	60	130	46	2	2312J	88500	28300	4300	5300	2.6
50	58	65	120	23	1.5	1213TN	31000	12500	5300	6300	1.15
51	59	65	120	31	1.5	2213ETN	57000	19300	4500	5300	1.45
52	60	65	140	33	2.1	1313J	62500	22900	4300	5300	2.45
53	61	65	140	48	2.1	2313J	96500	32500	4000	4800	3.25
54	62	70	125	24	1.5	1214TN	34500	13700	5000	6000	1.25
55	63	70	125	31	1.5	2214J	44000	17100	4500	5600	1.5
56	64	70	150	35	2.1	1314J	67500	25100	4000	5000	3
57	65	70	150	51	2.1	2314J	111000	37500	3600	4300	4.25
58	66	75	130	25	1.5	1215TN	39000	15600	4800	5600	1.35
59	67	75	130	31	1.5	2215J	44500	17800	4300	5300	1.6
60	68	75	160	37	2.1	1315J	80000	30000	3800	4500	3.55
61	69	75	160	55	2.1	2315J	125000	43000	3400	4300	5.15
