Double row angular contact ball bearings, 3000 serie (Sealed)

Manufacturer	NSK
Description	Double row angular contact ball bearings (sealed) - 3200B-2RSTN
Part number	3200B-2RSTN
Mass	0.043 kg
Inner diameter	10 mm

Outer diameter	30 mm
Radial load	7800 N
Radial load2	4550 N
Rotary speed (greased)	16000 rpm
Angular speed (oiled)	22000 rpm

CAD models

Request for quotation

Product selection

Level of detail

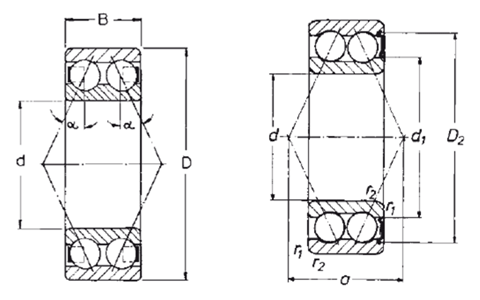

Index	Selector	d (mm)	D (mm)	B (mm)	r1.2 min (mm)	Bearing part number	Cr (N)	C0r (N)	Speed limit - Grease (rpm)	Speed limit - Oil (rpm)	d1 (mm)	D1, D2 (mm)	a (mm)	Mass (kg)
1	1	10	30	14	0.6	3200B-2RSTN	7800	4550	16000	22000	17.9	23.9	15.1	0.043
2	2	12	32	15.9	0.6	3201B-2RSTN	10600	5850	15000	20000	18.3	25.7	16.6	0.051
3	3	12	37	19	1	3301B-2RSTN	14500	8200	10500	11500	21.1	30.4	19.4	0.09
4	4	15	35	15.9	0.6	3202B-2RSTN	11800	7100	14000	19000	21	29.3	18	0.058
5	5	15	42	19	1	3302B-2RSTN	16300	10000	11000	16000	25.6	34.2	21.2	0.112
6	6	17	40	17.5	0.6	3203B-2RSTN	14600	9000	12000	17000	24	33.1	20.5	0.085
7	7	17	47	22.2	1	3303B-2RSTN	20800	12500	10000	15000	26.2	37.7	24	0.161
8	8	20	47	20.6	1	3204B-2RSTN	19600	12500	10000	15000	28.9	38.7	24.2	0.139
9	9	20	52	22.2	1.1	3304B-2RSTN	23200	15000	9000	13000	31.2	42.6	26.4	0.197
10	10	25	52	20.6	1	3205B-2RSTN	21200	14600	8500	12000	33.9	43.7	26.5	0.159
11	11	25	62	25.4	1.1	3305B-2RSTN	30000	20000	7500	10000	37.1	50	30.7	0.316
12	12	30	62	23.8	1	3206B-2RSTN	30000	21200	7000	9500	40	52.7	31.4	0.265
13	13	30	72	30.2	1.1	3306B-2RSTN	41500	28500	6300	8500	44	59	36.2	0.496
14	14	35	72	27	1.1	3207B-2RSTN	39000	28500	6300	8500	47.2	60.4	36.6	0.412
15	15	35	80	34.9	1.5	3307B-2RSTN	51000	34500	5600	7500	49.2	65.4	41.5	0.664
16	16	40	80	30.2	1.1	3208B-2RSTN	48000	36500	5600	7500	52.9	67.9	40.9	0.55
17	17	40	90	36.5	1.5	3308B-2RSTN	62000	45000	5000	6700	55.4	74.3	46.1	0.905
18	18	45	85	30.2	1.1	3209B-2RSTN	48000	37500	5000	6700	57.1	72.6	43.2	0.583
19	19	45	100	39.7	1.5	3309B-2RSTN	68000	51000	4500	6000	62.2	81.6	50	1.21
20	20	50	90	30.2	1.1	3210B-2RSTN	51000	42500	4800	6300	61.9	78.1	45.5	0.632
21	21	50	110	44.4	2	3310B-2RSTN	81000	62000	4000	5300	68.2	89.6	54.9	1.6
22	22	55	100	33.3	1.5	3211B-2RSTN	58500	49000	4300	5600	68.6	85.3	49.9	0.876
23	23	55	120	49.2	2	3311B-2RSTN	102000	78000	3800	5000	75.2	98.4	61.2	2.11
24	24	60	110	36.5	1.5	3212B-2RSTN	72000	61000	3800	5000	75.7	94.3	55.1	1.18
25	25	60	130	54	2.1	3312B-2RSTN	125000	98000	3400	4500	81.2	108.7	67.3	2.7
26	26	65	120	38.1	1.5	3213B-2RSTN	80000	73500	3400	4500	84.5	103.5	59.8	1.52
27	27	65	140	58.7	2.1	3313B-2RSTN	150000	118000	3200	4300	88.2	118	73.3	3.39
28	28	70	125	39.7	1.5	3214B-2RSTN	83000	76500	3400	4500	86.7	106.2	61.6	1.64
29	29	70	150	63.5	2.1	3314B-2RSTN	159200	128400	3000	4000	94.7	125	80.8	4.9
30	30	75	130	41.3	1.5	3215B-2RSTN	91500	85000	3200	4300	92.4	112.6	65	1.91
31	31	75	160	68.3	2.1	3315B-2RSTN	173400	145300	2800	3800	101.4	133	83.8	5.7
32	32	80	140	44.4	2	3216B-2RSTN	98000	93000	3000	4000	98.5	120.3	69	2.45
33	33	85	150	49.2	2	3217B-2RSTN	116000	110000	2800	3800	106.4	128.5	74.6	3.3
34	34	90	160	52.4	2	3218B-2RSTN	124600	120300	2600	3600	113.2	136.6	78.9	4.17
