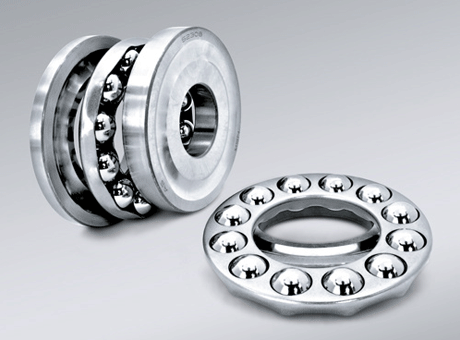

Double direction flat seat ball thrusts

Manufacturer	NSK
Description	Double direction flat seat ball thrusts, d = 15 mm, D = 32 mm, T1 = 22 mm
Part number	52202
Outer diameter	32 mm
Inner diameter	15 mm
Maximum inner diameter	10 mm
Mass	0.081 kg

Axial load	16700 N
Rotary speed (greased)	4800 min-1
Angular speed (oiled)	7100 min-1
Axial load2	24800 N
Axial load3	1710
Axial load4	2530

CAD models

Request for quotation

Product selection

Level of detail

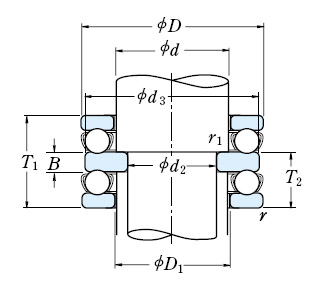

Index	Selector	d2 (mm)	d (mm)	D (mm)	T1 (mm)	r min (mm)	r1 min (mm)	Ca (N)	C0a (N)	Ca (kgf)	C0a (kgf)	Speed limit - Grease (min-1)	Speed limit - Oil (min-1)	Bearing part number	d3 (mm)	D1 (mm)	T2 (mm)	B (mm)	Mass (kg)
1	1	10	15	32	22	0.6	0.3	16700	24800	1710	2530	4800	7100	52202	32	17	13.5	5	0.081
2	2	15	20	40	26	0.6	0.3	22500	37500	2290	3850	4000	6000	52204	40	22	16	6	0.148
3	3	15	25	60	45	1	0.6	56000	89500	5700	9100	2400	3600	52405	60	27	28	11	0.641
4	4	20	25	47	28	0.6	0.3	28000	50500	2860	5150	3400	5300	52205	47	27	17.5	7	0.213
5	5	20	25	52	34	1	0.3	36000	61500	3650	6250	3000	4500	52305	52	27	21	8	0.324
6	6	20	30	70	52	1	0.6	73000	126000	7450	12800	2200	3200	52406	70	32	32	12	0.978
7	7	25	30	52	29	0.6	0.3	29500	58000	3000	5950	3200	5000	52206	52	32	18	7	0.254
8	8	25	30	60	38	1	0.3	43000	78500	4400	8000	2600	4000	52306	60	32	23.5	9	0.483
9	9	25	35	80	59	1.1	0.6	87500	155000	8950	15800	1800	2800	52407	80	37	36.5	14	1.43
10	10	30	35	62	34	1	0.3	39500	78000	4050	7950	2800	4300	52207	62	37	21	8	0.406
11	11	30	35	68	44	1	0.3	56000	105000	5700	10700	2400	3600	52307	68	37	27	10	0.71
12	12	30	40	68	36	1	0.6	47500	98500	4850	10000	2600	3800	52208	68	42	22.5	9	0.543
13	13	30	40	78	49	1	0.6	70000	135000	7100	13700	2000	3000	52308	78	42	30.5	12	1.04
14	14	30	40	90	65	1.1	0.6	103000	188000	10500	19100	1700	2400	52408	90	42	40	15	1.98
15	15	35	45	73	37	1	0.6	48000	105000	4900	10700	2400	3600	52209	73	47	23	9	0.606
16	16	35	45	85	52	1	0.6	80500	163000	8200	16700	1900	2800	52309	85	47	32	12	1.28
17	17	35	45	100	72	1.1	0.6	128000	246000	13000	25100	1500	2200	52409	100	47	44.5	17	2.71
18	18	40	50	78	39	1	0.6	49000	111000	5000	11400	2400	3400	52210	78	52	24	9	0.697
19	19	40	50	95	58	1.1	0.6	97500	202000	9950	20600	1700	2600	52310	95	52	36	14	1.78
20	20	40	50	110	78	1.5	0.6	147000	288000	15000	29400	1400	2000	52410	110	52	48	18	3.51
21	21	45	55	90	45	1	0.6	70000	159000	7150	16200	2000	3000	52211	90	57	27.5	10	1.11
22	22	45	55	105	64	1.1	0.6	115000	244000	11800	24900	1500	2400	52311	105	57	39.5	15	2.43
23	23	45	55	120	87	1.5	0.6	181000	350000	18500	35500	1200	1800	52411	120	57	53.5	20	4.66
24	24	50	60	95	46	1	0.6	71500	169000	7300	17200	1900	3000	52212	95	62	28	10	1.22
25	25	50	60	110	64	1.1	0.6	119000	263000	12100	26800	1500	2200	52312	110	62	39.5	15	2.59
26	26	50	60	130	93	1.5	0.6	202000	395000	20600	40500	1100	1700	52412	130	62	57	21	5.74
27	27	50	65	140	101	2	1	234000	495000	23800	50500	1000	1600	52413	140	68	62	23	7.41
28	28	55	65	100	47	1	0.6	75500	189000	7700	19200	1900	2800	52213	100	67	28.5	10	1.34
29	29	55	65	115	65	1.1	0.6	123000	282000	12500	28700	1500	2200	52313	115	67	40	15	2.8
30	30	55	70	105	47	1	1	74000	189000	7550	19200	1800	2800	52214	105	72	28.5	10	1.44
31	31	55	70	125	72	1.1	1	137000	315000	14000	32000	1300	2000	52314	125	72	44	16	3.67
32	32	55	70	150	107	2	1	252000	555000	25700	56500	1000	1500	52414	150	73	65.5	24	8.99
33	33	60	75	110	47	1	1	78000	209000	7950	21300	1800	2600	52215	110	77	28.5	10	1.54
34	34	60	75	135	79	1.5	1	159000	365000	16200	37500	1200	1800	52315	135	77	48.5	18	4.74
35	35	60	75	160	115	2	1	254000	560000	25900	57000	900	1400	52415	160	78	70.5	26	10.8
36	36	65	80	115	48	1	1	79000	218000	8050	22300	1700	2600	52216	115	82	29	10	1.66
37	37	65	80	140	79	1.5	1	164000	395000	16700	40000	1200	1800	52316	140	82	48.5	18	4.99
38	38	65	80	170	120	2.1	1	272000	620000	27800	63500	850	1300	52416	170	83	73.5	27	12.6
39	39	65	85	180	128	2.1	1.1	310000	755000	31500	77000	800	1200	52417X	179.5	88	78.5	29	15.4
40	40	70	85	125	55	1	1	96000	264000	9800	26900	1500	2200	52217	125	88	33.5	12	2.26
41	41	70	85	150	87	1.5	1	207000	490000	21100	50000	1100	1600	52317	150	88	53	19	6.38
42	42	70	90	190	135	2.1	1.1	330000	825000	33500	84000	750	1100	52418X	189.5	93	82.5	30	17.5
43	43	75	90	135	62	1.1	1	114000	310000	11600	31500	1400	2000	52218	135	93	38	14	3.09
44	44	75	90	155	88	1.5	1	214000	525000	21900	53500	1100	1600	52318	155	93	53.5	19	6.79
45	45	80	100	210	150	3	1.1	370000	985000	38000	100000	670	1000	52420X	209.5	103	91.5	33	26.8
46	46	85	100	150	67	1.1	1	135000	375000	13700	38500	1300	1900	52220	150	103	41	15	4.08
47	47	85	100	170	97	1.5	1	239000	595000	24300	61000	950	1500	52320	170	103	59	21	8.82
48	48	90	110	230	166	3	1.1	415000	1150000	42000	118000	600	900	52422X	229	113	101.5	37	35.6
49	49	95	110	160	67	1.1	1	136000	395000	13900	40000	1200	1800	52222	160	113	41	15	4.39
50	50	95	110	190	110	2	1	282000	755000	28800	77000	850	1300	52322X	189.5	113	67	24	12.7
51	51	95	120	250	177	4	1.5	515000	1540000	52500	157000	560	850	52424X	249	123	108.5	40	47.6
52	52	100	120	170	68	1.1	1.1	141000	430000	14400	44000	1200	1800	52224	170	123	41.5	15	4.92
53	53	100	120	210	123	2.1	1.1	330000	930000	33500	95000	750	1100	52324X	209.5	123	75	27	17.6
54	54	100	130	270	192	4	1.5	525000	1590000	53500	162000	530	800	52426X	269	134	117	42	57.8
55	55	110	130	190	80	1.5	1.1	183000	550000	18700	56000	1000	1500	52226X	189.5	133	49	18	7.43
56	56	110	130	225	130	2.1	1.1	350000	1030000	35500	105000	710	1100	52326X	224	134	80	30	21.5
57	57	110	140	280	196	4	1.5	550000	1750000	56500	178000	500	750	52428X	279	144	120	44	62.4
58	58	120	140	200	81	1.5	1.1	186000	575000	18900	59000	1000	1500	52228X	199.5	143	49.5	18	8.01
59	59	120	140	240	140	2.1	1.1	370000	1130000	37500	115000	670	1000	52328X	239	144	85.5	31	24.8
60	60	120	150	300	209	4	2	620000	2010000	63000	205000	480	710	52430X	299	153	127.5	46	77.8
61	61	130	150	215	89	1.5	1.1	238000	735000	24300	75000	900	1300	52230X	214.5	153	54.5	20	10.4
62	62	130	150	250	140	2.1	1.1	380000	1200000	39000	123000	630	950	52330X	249	154	85.5	31	30.3
63	63	130	160	320	226	5	2	650000	2210000	66000	226000	430	630	52432X	319	164	138	50	93.6
64	64	135	170	340	236	5	2.1	715000	2480000	73000	253000	400	600	52434X	339	174	143	50	110
65	65	140	160	225	90	1.5	1.1	249000	805000	25400	82000	850	1300	52232X	224.5	163	55	20	11.2
66	66	140	160	270	153	3	1.1	475000	1570000	48500	160000	600	900	52332X	269	164	93	33	35.1
67	67	140	180	360	245	5	3	750000	2730000	76500	278000	380	560	52436X	359	184	148.5	52	126
68	68	150	170	240	97	1.5	1.1	280000	915000	28500	93000	800	1200	52234X	239.5	173	59	21	13.6
69	69	150	170	280	153	3	1.1	465000	1570000	47500	160000	560	850	52334X	279	174	93	33	40.8
70	70	150	180	250	98	1.5	2	284000	955000	28900	97000	800	1200	52236X	249	183	59.5	21	14.8
71	71	150	180	300	165	3	3	480000	1680000	49000	171000	530	800	52336X	299	184	101	37	46.3
72	72	160	190	270	109	2	2	320000	1110000	32500	113000	710	1100	52238X	269	194	66.5	24	22.1
73	73	160	190	320	183	4	2	550000	1960000	56000	199000	480	710	52338X	319	195	111.5	40	113
74	74	170	200	280	109	2	2	315000	1110000	32500	113000	710	1000	52240X	279	204	66.5	24	23.1
75	75	170	200	340	192	4	2	600000	2220000	61500	227000	450	670	52340X	339	205	117	42	78.4
76	76	190	220	300	110	2	2	325000	1210000	33500	123000	670	1000	52244X	299	224	67	24	25.2
