GZD Roller Guide Block

Manufacturer	Nanjing Technical Equipment Manufacture Co., LTD
Description	Roller Guide Block GZD15x53-I-2-B2
Part number	GZD15x53-I-2-B2

CAD models

Request for quotation

Product selection

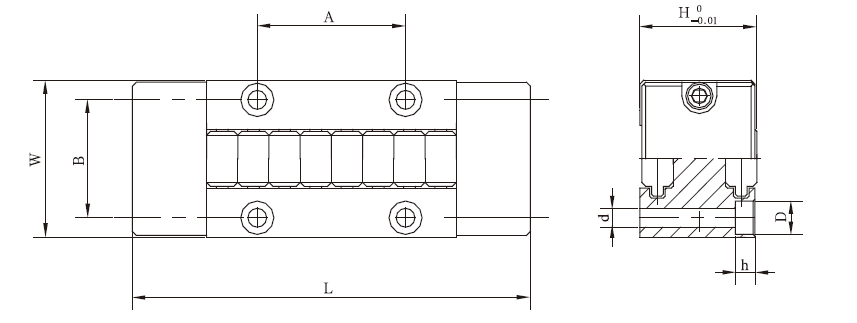

Index	Selector	Model	L	W	H	dxDxh	A	B	C(KN)	C0(KN)	Kg
1	1	GZD15x53	52.8	26.5	15	Φ3.4	19	19.3	23	29	0.12
2	2	GZD20x70	70	30	20	Φ3.6xΦ6x4	26	23	38.3	53.4	0.25
3	3	GZD30x123	123	40	30	Φ4.5xΦ8.5x5	58	30	63.5	72.3	0.92
4	4	GZD40x132	132	51.4	40	Φ5.5xΦ10x6	50.8	41.5	89.1	121	1.7

Guide number of one plane

Accuracy

Grading number

Contact the supplier

Nanjing Technical Equipment Manufacture Co., LTD

Nanjing Technical Equipment Manufacture Co., LTD deposited nearly 50 years’ rich experience and development strength in rolling function machine parts.
