By Nanjing Technical Equipment Manufacture Co., LTD

GGY Arc Guide

Manufacturer	Nanjing Technical Equipment Manufacture Co., LTD
Description	Arc Guide GGY16/168AA(AB)-168
Part number	GGY16/168AA(AB)-168

CAD models

Request for quotation

Product selection

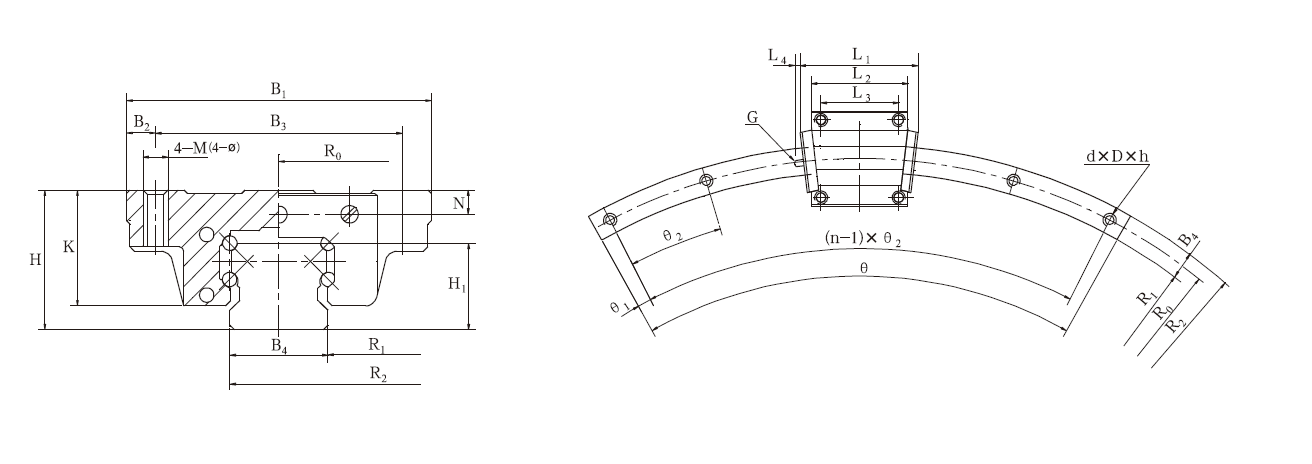

Index	Selector	Model	H	B1	B2	B3	K	L1	L2	L3	M	Φ	L4	G	N	B4	H1	dxDxh	θ2	R0	R1	R2	θ	Lmax
1	1	GGY16/168AA(AB)	24	47	4.5	38	19.4	58	40.5	30	M5	4.5	2.5	4	4	16	15	4.5x7.5x5.3	15	168	160	176	160	500
2	2	GGY16/228AA(AB)	24	47	4.5	38	19.4	58	40.5	30	M5	4.5	2.5	4	4	16	15	4.5x7.5x5.3	15	228	220	236	160	500
3	3	GGY16/300AA(AB)	24	47	4.5	38	19.4	58	40.5	30	M5	4.5	2.5	4	4	16	15	4.5x7.5x5.3	15	300	292	308	75	500
4	4	GGY16/390AA(AB)	24	47	4.5	38	19.4	58	40.5	30	M5	4.5	2.5	4	4	16	15	4.5x7.5x5.3	15	390	382	398	65	500
5	5	GGY25/230AA(AB)	37	70	6.5	57	30.5	79.5	59	45	M8	7	11	6	6	23	22	7x11x9	15	230	218.5	241.5	160	500

The arc radius of guide

Contact the supplier

Nanjing Technical Equipment Manufacture Co., LTD

Nanjing Technical Equipment Manufacture Co., LTD deposited nearly 50 years’ rich experience and development strength in rolling function machine parts.
