By Nanjing Technical Equipment Manufacture Co., LTD

GGD-AA/AAL Heavy Load Radial LMG

Manufacturer	Nanjing Technical Equipment Manufacture Co., LTD
Description	Heavy Load Radial LMG GGD35AAMM1P0 1x276.4-1
Part number	GGD35AAMM1P0 1x276.4-1

CAD models

Request for quotation

Product selection

Level of detail

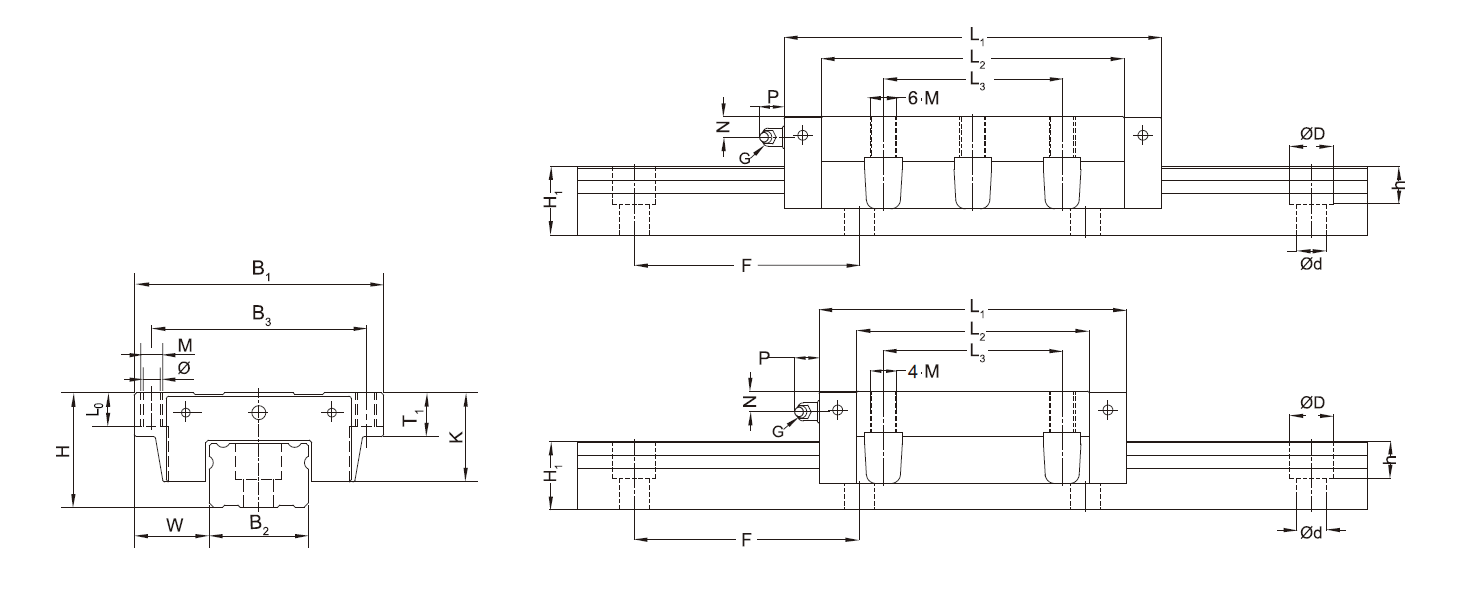

Index	Selector	Model	H	W	K	B1	L1	B3	L3	M	Φ	T1	L0	L2	B2	H1	dxDxh	F	Lmax	G	P	N
1	2	GGD35AA	44	33	35	100	116.4	82	62	M10	8.5	20	14	86	34	24.2	9x14x12	80	6000	M6	8.8	8
2	3	GGD35AAL	44	33	35	100	138.4	82	62	M10	8.5	20	14	108	34	24.2	9x14x12	80	6000	M6	8.8	8
3	4	GGD45AA	52	37.5	43.1	120	143	100	80	M12	10.5	22	20	106	45	29	14x20x16	105	6000	M8	15	10
4	5	GGD45AAL	52	37.5	43.1	120	174	100	80	M12	10.5	22	20	137	45	29	14x20x16	105	6000	M8	15	10
5	6	GGD55AA	63	43.5	49	140	166	116	95	M14	12.5	24	22	124	53	36.5	16x23x20	120	6000	M8	15	11
6	7	GGD55AAL	63	43.5	49	140	203	116	95	M14	12.5	24	22	161	53	36.5	16x23x20	120	6000	M8	15	11
7	1	GGD65AAL	75	53.5	60	170	257.2	142	110	M16	14.5	28	25	207	63	43	18x26x22	150	6000	M8	15	16

Length of guide

Special require

Seal form

Number slider of one guide

Pre load type

Number guide one plane

Accuracy

Plate

Contact the supplier

Nanjing Technical Equipment Manufacture Co., LTD

Nanjing Technical Equipment Manufacture Co., LTD deposited nearly 50 years’ rich experience and development strength in rolling function machine parts.
