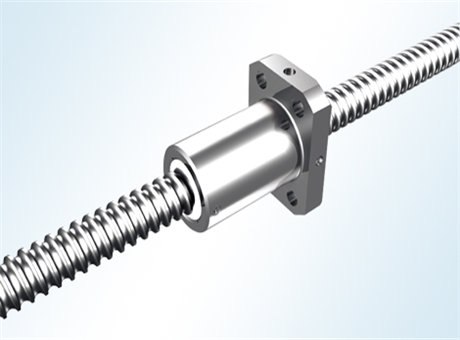

Ball Screw With JF Mini-Type

Manufacturer	Nanjing Technical Equipment Manufacture Co., LTD
Description	Ball Screw With JF Mini-Type JF0801.5-4-P1/200x180
Part number	JF0801.5-4-P1/200x180

CAD models

Request for quotation

Product selection

Index	Selector	Model	Nominal Diameter d0	Nominal Lead Ph0	External Diameter d1	Diameter of Ball Dw	Bottom Diameter d2	Numbers of Cycle n	Dynamic Load Ca KN	Static Load C0a KN	D1(g6)	D2	L	D3	B	h	D4	D5	F	H	M
1	1	JF0801.5-4	8	1.5	8	1.2	7	4	1.7	3.2	16	32	25	23	6	3.5	3.4	6.5	20	29	M2.5
2	2	JF0802-4	8	2	8	1.588	6.7	4	2.3	4	16	32	27	23	6	3.5	3.4	6.5	20	29	M2.5
3	3	JF0802.5-4	8	2.5	8	1.588	6.7	4	2.3	4	16	32	30	23	6	3.5	3.4	6.5	20	29	M2.5
4	4	JF0803-3	8	3	8	1.588	6.7	3	1.8	3	16	32	27	23	6	3.5	3.4	6.5	20	29	M2.5
5	5	JF1001.5-4	10	1.5	9.8	1.2	8.9	4	1.9	4.1	18	38	27	27	8	4.5	4.5	8	24	34	M2.5
6	6	JF1002-4	10	2	9.8	1.588	8.5	4	2.7	1.9	18	38	29	27	8	4.5	4.5	8	24	34	M2.5
7	7	JF1002.5-4	10	2.5	9.5	2	7.9	4	3.6	6.3	18	38	32	27	8	4.5	4.5	8	24	34	M2.5
8	8	JF1003-3	10	3	9.5	2	7.9	3	2.8	4.7	18	38	29	27	8	4.5	4.5	8	24	34	M2.5
9	9	JF1201.5-4	12	1.5	11.8	1.2	10.8	4	2.1	5	20	40	27	29	8	4.5	4.5	8	25	36	M2.5
10	10	JF1202-4	12	2	11.9	1.588	10.6	4	3.1	6.5	20	40	29	29	8	4.5	4.5	8	25	36	M2.5
11	11	JF1202.5-4	12	2.5	11.7	2	10.1	4	4	7.8	20	40	33	29	8	4.5	4.5	8	25	36	M2.5
12	18	JF1203-4	12	3	11.3	2.381	9.6	4	4.7	8.2	20	43	36	32	8	4.5	4.5	8	27	38	M2.5
13	12	JF1602-4	16	2	15.9	1.588	14.6	4	3.5	8.7	25	47	35	35	10	5.5	5.5	9.5	30	43	M6
14	13	JF1602.5-4	16	2.5	15.7	2	14.2	4	4.8	10.9	25	47	33	35	10	5.5	5.5	9.5	30	43	M6
15	14	JF1603-4	16	3	15.3	2.381	13.5	4	6	12.5	25	47	38	35	10	5.5	5.5	9.5	30	43	M6
16	15	JF2002-4	20	2	19.9	1.588	18.8	4	3.9	11.3	30	52	35	40	10	5.5	5.5	9.5	32	47	M6
17	16	JF2002.5-4	20	2.5	19.7	2	18.1	4	5.3	14	30	52	33	40	10	5.5	5.5	9.5	32	47	M6
18	17	JF2003-4	20	3	19.3	2.381	17.5	4	6.7	16.1	30	52	38	40	10	5.5	5.5	9.5	32	47	M6

Length of screw

Length of ball screw

Special

Screw thread

Type

Accuracy class

Documentation

Contact the supplier
