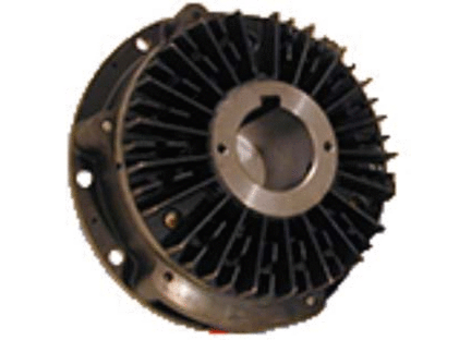

Tension Control Brake, 828109

Manufacturer	Nexen
Description	Tension Control Brake, Bore to Size - with Straight Bushing Options, Black Oxide Finish, 1/4 NPT Port Size, 1800 rpm Max
Manufacturer Part Number	828109
MI Item Number	03456173
Distributor	Motion
Motion Internal Description	828109 BRAKE
E-Shop link	https://www.motion.com/products/sku/03456173
Product Page	https://www.motion.com/products/sku/03456173
Finish	Black Oxide
Overall Length	4.03 in
Bore Type	Straight
Bore Style	Bore to Size - with Straight Bushing Options
Ratings	CE, and RoHS
Approximate Brake Facing Life	4599 hp/hr
Brake Air Chamber Volume When New	4.222 in³
Brake Air Chamber Volume When Worn Out	10.443 in³
Brake Facing Edge Color Code	Green
Brake Facing Effective Area	50.3 in²
Brake Facing Type	Low Coefficient
Brake Peak Thermal Input Rate	45.00 hp
Brake Series	S-1000A
Engagement/Release	Air/Spring

Function	Tensioning
Maximum Brake Continuous Thermal Dissipation	5.50 hp
Maximum Pressure	80 psi
Maximum RPM	1800 rpm
Mounting Configuration	Shaft Mounted
Open or Enclosed Design	Open
Port Size	1/4 NPT
Rebuild Kits	827502
Shaft Inertia	171.36 lb/in²
Minimum Engagement Pressure	3 psi
Brake Heat Sink Capacity	423962 ft-lbs
Facing Kit	827572
Brake Response Factor	0.398
Bushing Type & Range	Straight Bushed - 0.0000 to 2.7500 in
Guards	828200
Overall Diameter	11.88 in
Controllers	964356, 964354, 912123, 912145, 964520, 964522, 964531, 964535, 964260
Engagement	Air
Maximum Dynamic Torque Capacity	1760 in-lbs
Release	Spring
Torque Pin Bracket	825500
