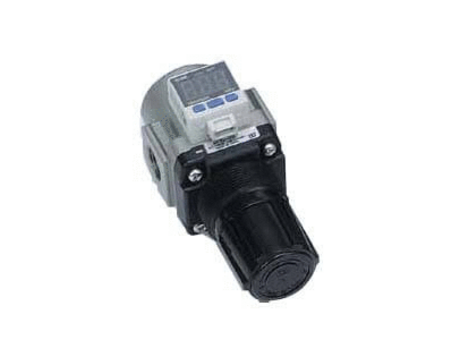

Standard Air Regulator AR30K-N03GH-Z

Manufacturer	SMC
Description	Standard Air Regulator, 70 scfm, 7.30 to 123 psi, 3/8 NPT Port
Manufacturer Part Number	AR30K-N03GH-Z
MI Item Number	02006991
Distributor	Motion
Motion Internal Description	AR30K-N03GH-Z (OLD NAR3060-N03G)
E-Shop link	https://motion.com/products/sku/02006991
Product Page	https://motion.com/products/sku/02006991
Weight	0.89 lbs
Maximum Operating Temperature	140 °F
Minimum Operating Temperature	23 °F
Maximum Operating Pressure	145 psi
Operating Temperature Range	23 To 140 °F
Overall Length	116 mm
Standards Met	ASTM B117-07a; JIS Z 2371

Port Gender	Female
Fluid Compatibility	Air
Overall Width	95.5 mm
Overall Height	53 mm
Port Size	3/8 NPT
Proof Pressure	217 psi
Thread Standard	NPT
Included Options	Backflow Function;Panel Mount Nut;Round Pressure Gauge;Name Plate;Pressure Gauge - psi, °F
Air Flow Capacity	70 scfm
Pressure Control Type	Relief Valve
Set Pressure Range	7.30 to 123 psi
Knob Type	Rising
Maximum Set Pressure	123 psi
Minimum Set Pressure	7.3 psi

CAD models

Buy now

Product selection

Index	Selector	MI Item Number	Motion Internal Description	Description	Weight	Maximum Operating Temperature	Minimum Operating Temperature	Maximum Operating Pressure	Operating Temperature Range	Overall Length	Standards Met	Port Gender	Fluid Compatibility	Overall Width	Overall Height	Port Size	Proof Pressure	Thread Standard	Included Options	Air Flow Capacity	Pressure Control Type	Set Pressure Range	Knob Type	Maximum Set Pressure	Minimum Set Pressure
1	1	02006991	AR30K-N03GH-Z (OLD NAR3060-N03G)	Standard Air Regulator, 70 scfm, 7.30 to 123 psi, 3/8 NPT Port	0.89 lbs	140 °F	23 °F	145 psi	23 To 140 °F	116 mm	ASTM B117-07a; JIS Z 2371	Female	Air	95.5 mm	53 mm	3/8 NPT	217 psi	NPT	Backflow Function;Panel Mount Nut;Round Pressure Gauge;Name Plate;Pressure Gauge - psi, °F	70 scfm	Relief Valve	7.30 to 123 psi	Rising	123 psi	7.3 psi
