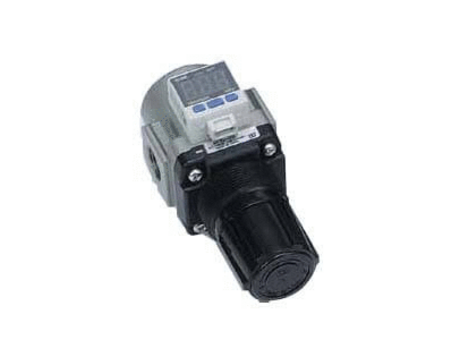

Standard Air Regulator AR20K-F01

Manufacturer	SMC
Description	Standard Air Regulator, 7.30 to 123 psi, 1/8 BSPP Port
Manufacturer Part Number	AR20K-F01
MI Item Number	02762679
Distributor	Motion
Motion Internal Description	AR20K-F01
E-Shop link	https://motion.com/products/sku/02762679
Product Page	https://motion.com/products/sku/02762679
Weight	0.50 lbs
Maximum Operating Temperature	140 °F
Minimum Operating Temperature	23 °F
Maximum Operating Pressure	145 psi
Operating Temperature Range	23 To 140 °F
Overall Length	94 mm

Standards Met	ASTM B117-07a; JIS Z 2371
Port Gender	Female
Fluid Compatibility	Air
Overall Width	57 mm
Overall Height	40 mm
Port Size	1/8 BSPP
Proof Pressure	217 psi
Thread Standard	BSPP
Included Options	Backflow Function
Pressure Control Type	Relief Valve
Set Pressure Range	7.30 to 123 psi
Knob Type	Rising
Maximum Set Pressure	123 psi
Minimum Set Pressure	7.3 psi

CAD models

Buy now

Product selection

Index	Selector	MI Item Number	Motion Internal Description	Description	Weight	Maximum Operating Temperature	Minimum Operating Temperature	Maximum Operating Pressure	Operating Temperature Range	Overall Length	Standards Met	Port Gender	Fluid Compatibility	Overall Width	Overall Height	Port Size	Proof Pressure	Thread Standard	Included Options	Pressure Control Type	Set Pressure Range	Knob Type	Maximum Set Pressure	Minimum Set Pressure
1	1	02762679	AR20K-F01	Standard Air Regulator, 7.30 to 123 psi, 1/8 BSPP Port	0.50 lbs	140 °F	23 °F	145 psi	23 To 140 °F	94 mm	ASTM B117-07a; JIS Z 2371	Female	Air	57 mm	40 mm	1/8 BSPP	217 psi	BSPP	Backflow Function	Relief Valve	7.30 to 123 psi	Rising	123 psi	7.3 psi
