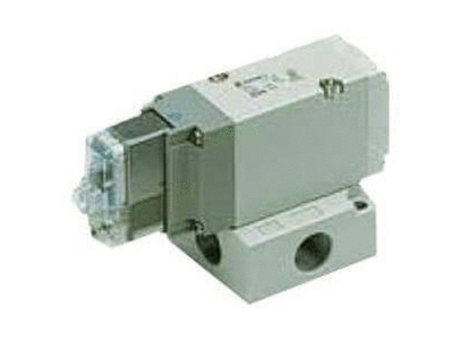

Solenoid-Operated Air Control Valve VP544-5DZ1-03A

Manufacturer	SMC
Description	Solenoid-Operated Air Control Valve, 3 Ports, 2 Positions, Single Solenoid
Manufacturer Part Number	VP544-5DZ1-03A
MI Item Number	04760118
Distributor	Motion
Motion Internal Description	VP544-5DZ1-03A
E-Shop link	https://motion.com/products/sku/04760118
Product Page	https://motion.com/products/sku/04760118
Weight	1.34 lbs
Seal Material	Rubber
Body Material	Aluminum
Number of Ports	3
Operating Temperature Range	14 to 122 °F
Overall Length	129.1 mm
Standards Met	JIS
Overall Width	52 mm
Overall Height	113.5 mm

Operating Medium	Air
Piping Type	Body Ported (Side)
Normal State	Normally Closed
Flow Coefficient (Cv) / Flow Factor (Kv)	2 (1 to 2 (P to A)) Cv;2 (2 to 3 (A to R)) Cv
Actuation	Piloted Solenoid
Number of Solenoids	Single
Response Time	≤39 ms
Solenoid Allowable Voltage Fluctuation	±10 %
Solenoid Electrical Entry	DIN Terminal
Solenoid Power Consumption	1.75 W
Solenoid Supply Voltage	24 V dc
Manual Operation Type	Non-Locking Push
Number of Positions	2
Valve Function	Spool
Sonic Conductance (C)	8.8 (1 to 2 (P to A)) dm³/(s.bar);8.8 (2 to 3 (A to R)) dm³/(s.bar)
Port Sizes	3/8 BSPT
Additional Details	Return Spring
