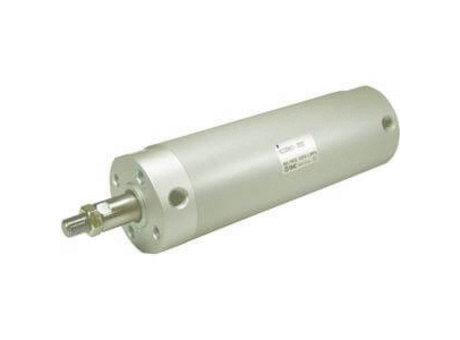

Round Body Repairable Cylinder NCGBA63-1200

Manufacturer	SMC
Description	Round Body Repairable Cylinder, Aluminum Cylinder, Double-Acting, Single Rod
Manufacturer Part Number	NCGBA63-1200
MI Item Number	04573206
Distributor	Motion
Motion Internal Description	NCGBA63-1200
E-Shop link	https://motion.com/products/sku/04573206
Product Page	https://motion.com/products/sku/04573206
Weight	5.85 lbs
Body Material	Aluminum
Maximum Operating Pressure	+145 psi
Minimum Operating Pressure	+8 psi
Operating Pressure Range	+8 to +145 psi
Operating Temperature Range	+14 to +158 °F
Overall Length	17.69 in
Standards Met	JIS Class 2

Port Gender	Female
Overall Width	2.83 in
Port Size	1/4 NPT
Proof Pressure	+215 psi
Series	NCG
Port Thread Standard	NPT
Mounting Type	Basic
Bore Diameter	2.5000 in
Piston Action	Double-Acting
Rod Type	Single Rod
Cushion Type	Air Cushion
Rod Gender	Male
Rod Size	1/2-20 in
Rod Thread Standard	UNF
Stroke Length	12 in
Rod Size / Thread	1/2-20 Male UNF

CAD models

Buy now

Product selection

Index	Selector	MI Item Number	Motion Internal Description	Description	Weight	Body Material	Maximum Operating Pressure	Minimum Operating Pressure	Operating Pressure Range	Operating Temperature Range	Overall Length	Standards Met	Port Gender	Overall Width	Port Size	Proof Pressure	Series	Port Thread Standard	Mounting Type	Bore Diameter	Piston Action	Rod Type	Cushion Type	Rod Gender	Rod Size	Rod Thread Standard	Stroke Length	Rod Size / Thread
1	1	04573206	NCGBA63-1200	Round Body Repairable Cylinder, Aluminum Cylinder, Double-Acting, Single Rod	5.85 lbs	Aluminum	+145 psi	+8 psi	+8 to +145 psi	+14 to +158 °F	17.69 in	JIS Class 2	Female	2.83 in	1/4 NPT	+215 psi	NCG	NPT	Basic	2.5000 in	Double-Acting	Single Rod	Air Cushion	Male	1/2-20 in	UNF	12 in	1/2-20 Male UNF
