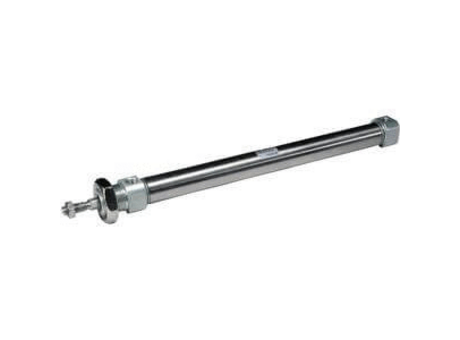

Round Body Non-Repairable Air Cylinder CD85KN12-40-A

Manufacturer	SMC
Description	Round Body Non-Repairable Air Cylinder, Stainless Steel Cylinder, Double-Acting, Single Rod
Manufacturer Part Number	CD85KN12-40-A
MI Item Number	03640983
Distributor	Motion
Motion Internal Description	CD85KN12-40-A
E-Shop link	https://motion.com/products/sku/03640983
Product Page	https://motion.com/products/sku/03640983
Weight	0.66 lbs
Body Material	Stainless Steel
Minimum Operating Pressure	+0.08 Mpa
Operating Pressure Range	+0.08 to +1 Mpa
Operating Temperature Range	-10 to +60 °C
Overall Length	145 mm
Standards Met	ISO
Port Gender	Female

Port Size	M5x0.8
Series	C85
Port Thread Standard	ISO
Mounting Type	Clevis Mount
Bore Diameter	12 mm
Options Included	Magnetized;Switch Ready
Piston Action	Double-Acting
Rod Type	Single Rod
Cushion Type	Rubber Bumper
Rod Gender	Male
Rod Size	M6x1
Rod Thread Standard	ISO
Stroke Length	40 mm
Rod Size / Thread	M6x1 Male ISO
Cylinder Size	Standard

CAD models

Buy now

Product selection

Index	Selector	MI Item Number	Motion Internal Description	Description	Weight	Body Material	Minimum Operating Pressure	Operating Pressure Range	Operating Temperature Range	Overall Length	Standards Met	Port Gender	Port Size	Series	Port Thread Standard	Mounting Type	Bore Diameter	Options Included	Piston Action	Rod Type	Cushion Type	Rod Gender	Rod Size	Rod Thread Standard	Stroke Length	Rod Size / Thread	Cylinder Size
1	1	03640983	CD85KN12-40-A	Round Body Non-Repairable Air Cylinder, Stainless Steel Cylinder, Double-Acting, Single Rod	0.66 lbs	Stainless Steel	+0.08 Mpa	+0.08 to +1 Mpa	-10 to +60 °C	145 mm	ISO	Female	M5x0.8	C85	ISO	Clevis Mount	12 mm	Magnetized;Switch Ready	Double-Acting	Single Rod	Rubber Bumper	Male	M6x1	ISO	40 mm	M6x1 Male ISO	Standard
