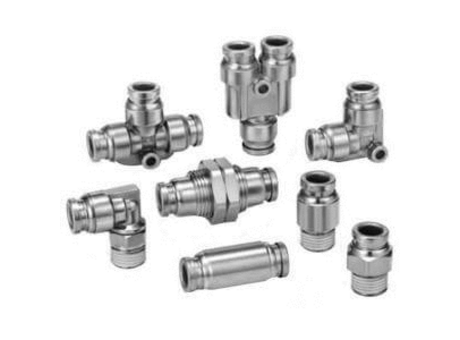

Push-to-Connect Tube Fitting KQG2L04-M5

Manufacturer	SMC
Description	Push-to-Connect Tube Fitting, 0.02 lbs, 2 Ports, 4 mm Compatible Tube Outer Diameter
Manufacturer Part Number	KQG2L04-M5
MI Item Number	03690310
Distributor	Motion
Motion Internal Description	KQG2L04-M5
E-Shop link	https://motion.com/products/sku/03690310
Product Page	https://motion.com/products/sku/03690310
Weight	0.02 lbs
Burst Pressure	3 Mpa
Maximum Operating Temperature	+150 (No Freezing) °C
Minimum Operating Temperature	-5 (No Freezing) °C
Seal Material	Fluoroelastomer
Body Material	Stainless Steel
Compatible Tube Outer Diameter	4 mm
Connection 1 Short Name	Push-In
Connection 2 Short Name	ISO

Fitting Connection Family	Push-In to ISO
Fitting Connection Type	4 Female Push-In to M5x0.8 Male ISO Threaded
Fitting Shape	90° Elbow
Flow Control Type	None
Hex Size	8 mm
Maximum Operating Pressure	+1 Mpa2
Minimum Operating Pressure	-100 kPa
Number of Ports	2
Operating Pressure Range	-100 kPa to +1 MPa
Operating Temperature Range	-5 to +150 (No Freezing) °C
Overall Diameter	9.1 mm
Overall Length	16.8 mm
Maximum Swivel Torque	Fixed Fitting
Port / Tube OD 1	4 mm Push-to-Connect
Port / Tube OD 2	M5
Port Gender	Female (Port 1);Male (Port 2)
Rotation Angle	0 °
