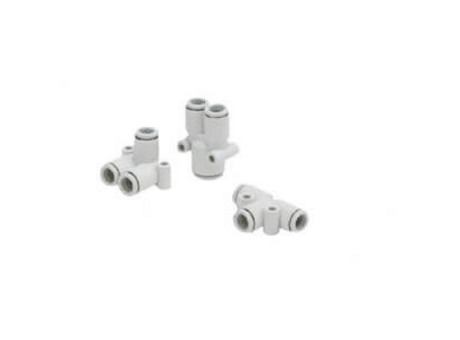

Push-In to Push-In Pneumatic Tubing Fitting KQ2U10-12A

Manufacturer	SMC
Description	Push-In to Push-In Pneumatic Tubing Fitting, 0.06 lbs, 3 Ports, 10 (Port 1) mm; 10 (Port 2) mm; 12 (Port 3) mm Compatible Tube Outer Diameter
Manufacturer Part Number	KQ2U10-12A
MI Item Number	01994995
Distributor	Motion
Motion Internal Description	KQ2U10-12A FITTING, BRANCH Y
E-Shop link	https://motion.com/products/sku/01994995
Product Page	https://motion.com/products/sku/01994995
Weight	0.06 lbs
Burst Pressure	3 Mpa
Maximum Operating Temperature	+40 (Water) °C;+60 °C
Minimum Operating Temperature	-5 °C;0 (Water) °C
Body Material	STANDARD TUBING, NO OPTIONS

Compatible Tube Outer Diameter	10 (Port 1) mm;10 (Port 2) mm;12 (Port 3) mm
Connection 1 Short Name	Push-In
Connection 2 Short Name	Push-In
Fitting Connection Family	Push-In to Push-In
Fitting Shape	Y-Connector
Flow Control Type	None
Maximum Operating Pressure	+1 Mpa2
Minimum Operating Pressure	-100 kPa
Number of Ports	3
Operating Pressure Range	-100 kPa to +1 MPa
Operating Temperature Range	-5 to +60 °C;0 to +40 (Water) °C
Overall Diameter	20.9 mm
Overall Length	49 mm

CAD models

Buy now

Product selection

Index	Selector	MI Item Number	Motion Internal Description	Description	Weight	Burst Pressure	Maximum Operating Temperature	Minimum Operating Temperature	Body Material	Compatible Tube Outer Diameter	Connection 1 Short Name	Connection 2 Short Name	Fitting Connection Family	Fitting Shape	Flow Control Type	Maximum Operating Pressure	Minimum Operating Pressure	Number of Ports	Operating Pressure Range	Operating Temperature Range	Overall Diameter	Overall Length
1	1	01994995	KQ2U10-12A FITTING, BRANCH Y	Push-In to Push-In Pneumatic Tubing Fitting, 0.06 lbs, 3 Ports, 10 (Port 1) mm; 10 (Port 2) mm; 12 (Port 3) mm Compatible Tube Outer Diameter	0.06 lbs	3 Mpa	+40 (Water) °C;+60 °C	-5 °C;0 (Water) °C	STANDARD TUBING, NO OPTIONS	10 (Port 1) mm;10 (Port 2) mm;12 (Port 3) mm	Push-In	Push-In	Push-In to Push-In	Y-Connector	None	+1 Mpa2	-100 kPa	3	-100 kPa to +1 MPa	-5 to +60 °C;0 to +40 (Water) °C	20.9 mm	49 mm
