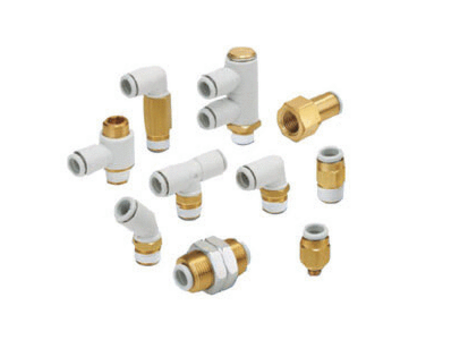

Push-In to Push-In Pneumatic Tubing Fitting KQ2F12-02A

Manufacturer	SMC
Description	Push-In to Push-In Pneumatic Tubing Fitting, 0.12 lbs, 2 Ports, 12 mm Compatible Tube Outer Diameter
Manufacturer Part Number	KQ2F12-02A
MI Item Number	01991723
Distributor	Motion
Motion Internal Description	KQ2F12-02A FITTING, FEMALE CONNECTOR
E-Shop link	https://motion.com/products/sku/01991723
Product Page	https://motion.com/products/sku/01991723
Weight	0.12 lbs
Burst Pressure	3 Mpa
Maximum Operating Temperature	+40 (Water) °C;+60 °C
Minimum Operating Temperature	-5 °C;0 (Water) °C
Body Material	STANDARD TUBING, NO OPTIONS
Compatible Tube Outer Diameter	12 mm

Connection 1 Short Name	Push-In
Connection 2 Short Name	BSP
Fitting Connection Family	Push-In to BSP
Fitting Shape	Straight
Flow Control Type	None
Hex Size	19 mm
Maximum Operating Pressure	+1 Mpa2
Minimum Operating Pressure	-100 kPa
Number of Ports	2
Operating Pressure Range	-100 kPa to +1 MPa
Operating Temperature Range	-5 to +60 °C;0 to +40 (Water) °C
Overall Diameter	19 mm
Overall Length	35 mm
Standards Met	JIS

CAD models

Buy now

Product selection

Index	Selector	MI Item Number	Motion Internal Description	Description	Weight	Burst Pressure	Maximum Operating Temperature	Minimum Operating Temperature	Body Material	Compatible Tube Outer Diameter	Connection 1 Short Name	Connection 2 Short Name	Fitting Connection Family	Fitting Shape	Flow Control Type	Hex Size	Maximum Operating Pressure	Minimum Operating Pressure	Number of Ports	Operating Pressure Range	Operating Temperature Range	Overall Diameter	Overall Length	Standards Met
1	1	01991723	KQ2F12-02A FITTING, FEMALE CONNECTOR	Push-In to Push-In Pneumatic Tubing Fitting, 0.12 lbs, 2 Ports, 12 mm Compatible Tube Outer Diameter	0.12 lbs	3 Mpa	+40 (Water) °C;+60 °C	-5 °C;0 (Water) °C	STANDARD TUBING, NO OPTIONS	12 mm	Push-In	BSP	Push-In to BSP	Straight	None	19 mm	+1 Mpa2	-100 kPa	2	-100 kPa to +1 MPa	-5 to +60 °C;0 to +40 (Water) °C	19 mm	35 mm	JIS
