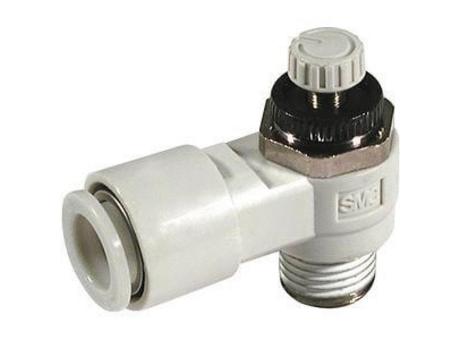

Pneumatic Flow Control AS2301F-N02-07

Manufacturer	SMC
Description	Pneumatic Flow Control, Piping Type: Universal, Metering: Meter Out, Thread Standard: NPT, Tube Size: 1/4 (OD) in
Manufacturer Part Number	AS2301F-N02-07
MI Item Number	04313836
Distributor	Motion
Motion Internal Description	AS2301F-N02-07
E-Shop link	https://motion.com/products/sku/04313836
Product Page	https://motion.com/products/sku/04313836
Weight	0.07 lbs
Seal Material	Nitrile

Port Connection Type	Push To Connect
Thread Standard	NPT
Operating Medium	Air
Tube Size	1/4 (OD) in
Piping Type	Universal
Valve Function	Needle
Valve Positioner Travel	None
Metering	Meter Out
Output Port Type	1/4 Female NPT Threaded in

CAD models

Buy now

Product selection

Index	Selector	MI Item Number	Motion Internal Description	Description	Weight	Seal Material	Port Connection Type	Thread Standard	Operating Medium	Tube Size	Piping Type	Valve Function	Valve Positioner Travel	Metering	Output Port Type
1	1	04313836	AS2301F-N02-07	Pneumatic Flow Control, Piping Type: Universal, Metering: Meter Out, Thread Standard: NPT, Tube Size: 1/4 (OD) in	0.07 lbs	Nitrile	Push To Connect	NPT	Air	1/4 (OD) in	Universal	Needle	None	Meter Out	1/4 Female NPT Threaded in
