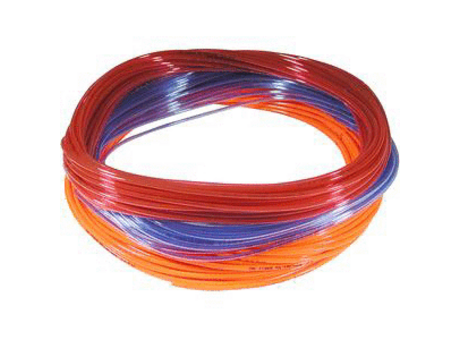

Nylon Tubing TIA07G-33

Manufacturer	SMC
Description	Nylon Tubing, Air/Water, 3.17 lbs, 0.250 in
Manufacturer Part Number	TIA07G-33
MI Item Number	02926674
Distributor	Motion
Motion Internal Description	TIA07G-33 TUBING
E-Shop link	https://motion.com/products/sku/02926674
Product Page	https://motion.com/products/sku/02926674
Weight	3.17 lbs
Burst Pressure	Refer to Burst Characteristics Chart by Clicking on the Manufacturer's Catalog Link

Color	Green
Fluid Type	Air;Water
Hardness	Shore D 70
Length	100 ft
Minimum Bend Radius	30 mm
Operating Pressure at Room Temp	218 psi
Tube Inner Diameter	0.180 in
Tube Material	Nylon 12
Tube Outer Diameter	0.250 in
Typical Applications	General Purpose Air/Water

CAD models

Buy now

Product selection

Index	Selector	MI Item Number	Motion Internal Description	Description	Weight	Burst Pressure	Color	Fluid Type	Hardness	Length	Minimum Bend Radius	Operating Pressure at Room Temp	Tube Inner Diameter	Tube Material	Tube Outer Diameter	Typical Applications
1	1	02926674	TIA07G-33 TUBING	Nylon Tubing, Air/Water, 3.17 lbs, 0.250 in	3.17 lbs	Refer to Burst Characteristics Chart by Clicking on the Manufacturer's Catalog Link	Green	Air;Water	Shore D 70	100 ft	30 mm	218 psi	0.180 in	Nylon 12	0.250 in	General Purpose Air/Water
