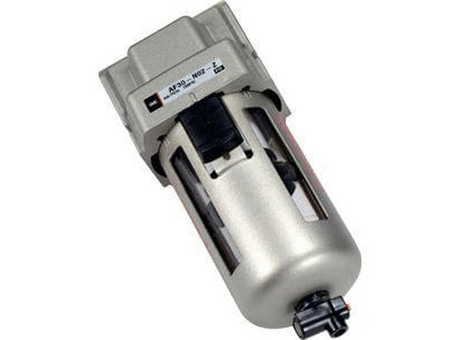

Modular Style Air Filter AF30-02C

Manufacturer	SMC
Description	Modular Style Air Filter, 5 micron, 1/4 BSPT Ports, Automatic (Normally Closed) Drain
Manufacturer Part Number	AF30-02C
MI Item Number	03661667
Distributor	Motion
Motion Internal Description	AF30-02C
E-Shop link	https://motion.com/products/sku/03661667
Product Page	https://motion.com/products/sku/03661667
Weight	0.69 lbs
Maximum Operating Temperature	140 °F
Maximum Operating Pressure	145 psi
Overall Length	170 mm
Standards Met	ASTM B117-07a
Port Gender	Female
Fluid Compatibility	Air

Overall Width	56.5 mm
Overall Height	53 mm
Port Size	1/4 BSPT
Bowl Material	Polycarbonate Bowl
Proof Pressure	218 psi
Thread Standard	BSPT
Body Size	30
Drain Type	Automatic (Normally Closed)
Element Life	2 yr
Filter Rating	5 μm
Filter Type	Modular Style Filter
Bowl Capacity	0.85 oz
Drain Method	Automatic
Micron Rating	5 micron

CAD models

Buy now

Product selection

Index	Selector	MI Item Number	Motion Internal Description	Description	Weight	Maximum Operating Temperature	Maximum Operating Pressure	Overall Length	Standards Met	Port Gender	Fluid Compatibility	Overall Width	Overall Height	Port Size	Bowl Material	Proof Pressure	Thread Standard	Body Size	Drain Type	Element Life	Filter Rating	Filter Type	Bowl Capacity	Drain Method	Micron Rating
1	1	03661667	AF30-02C	Modular Style Air Filter, 5 micron, 1/4 BSPT Ports, Automatic (Normally Closed) Drain	0.69 lbs	140 °F	145 psi	170 mm	ASTM B117-07a	Female	Air	56.5 mm	53 mm	1/4 BSPT	Polycarbonate Bowl	218 psi	BSPT	30	Automatic (Normally Closed)	2 yr	5 μm	Modular Style Filter	0.85 oz	Automatic	5 micron
