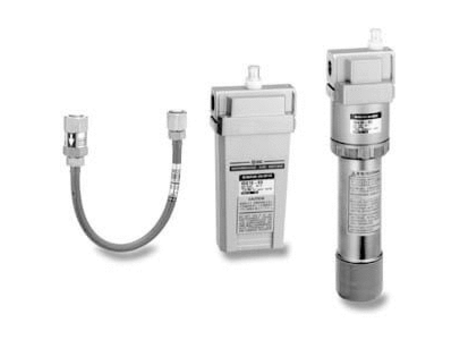

Membrane Air Dryer IDG20-03

Manufacturer	SMC
Description	Membrane Air Dryer, 8.828 scfm Air Flow Rate, 3/8 BSPT Port Size
Manufacturer Part Number	IDG20-03
MI Item Number	06914487
Distributor	Motion
Motion Internal Description	IDG20-03 AIR DRYER, MEMBRANE(200/50)-20
E-Shop link	https://motion.com/products/sku/06914487
Product Page	https://motion.com/products/sku/06914487
Maximum Operating Temperature	131 °F
Minimum Operating Temperature	23 °F

Minimum Operating Pressure	43 psi
Overall Length	4.450 in
Overall Width	2.130 in
Overall Height	8.350 in
Port Size	3/8 BSPT
Inlet Air Flow Rate	8.828 scfm
Standard Dew Point	-4 °F
Outlet Air Flow Rate	7.062 scfm
Purge Air Flow Rate	1.765 scfm

CAD models

Buy now

Product selection

Index	Selector	MI Item Number	Motion Internal Description	Description	Maximum Operating Temperature	Minimum Operating Temperature	Minimum Operating Pressure	Overall Length	Overall Width	Overall Height	Port Size	Inlet Air Flow Rate	Standard Dew Point	Outlet Air Flow Rate	Purge Air Flow Rate
1	1	06914487	IDG20-03 AIR DRYER, MEMBRANE(200/50)-20	Membrane Air Dryer, 8.828 scfm Air Flow Rate, 3/8 BSPT Port Size	131 °F	23 °F	43 psi	4.450 in	2.130 in	8.350 in	3/8 BSPT	8.828 scfm	-4 °F	7.062 scfm	1.765 scfm
