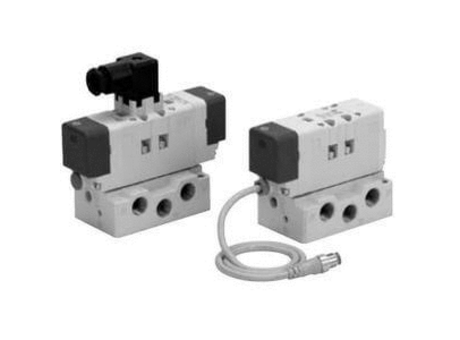

ISO Standard Solenoid Valve VQ7-6-FIG-D-3NR

Manufacturer	SMC
Description	ISO Standard Solenoid Valve, 5 Ports, 3 (Pressure Center) Positions, Double Solenoid
Manufacturer Part Number	VQ7-6-FIG-D-3NR
MI Item Number	06472444
Distributor	Motion
Motion Internal Description	VQ7-6-FIG-D-3NR
E-Shop link	https://motion.com/products/sku/06472444
Product Page	https://motion.com/products/sku/06472444
Seal Material	Rubber

Maximum Operating Pressure	145 psi
Number of Ports	5
Operating Temperature Range	23 to 140 °F
Operating Medium	Air
Flow Direction	4-Way
Number of Solenoids	Double
Solenoid Electrical Entry	DIN Terminal
Solenoid Supply Voltage	24 V dc
Number of Positions	3 (Pressure Center)

CAD models

Buy now

Product selection

Index	Selector	MI Item Number	Motion Internal Description	Description	Seal Material	Maximum Operating Pressure	Number of Ports	Operating Temperature Range	Operating Medium	Flow Direction	Number of Solenoids	Solenoid Electrical Entry	Solenoid Supply Voltage	Number of Positions
1	1	06472444	VQ7-6-FIG-D-3NR	ISO Standard Solenoid Valve, 5 Ports, 3 (Pressure Center) Positions, Double Solenoid	Rubber	145 psi	5	23 to 140 °F	Air	4-Way	Double	DIN Terminal	24 V dc	3 (Pressure Center)
