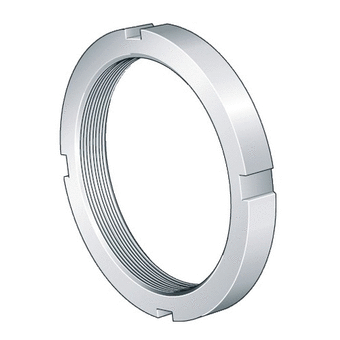

KM Series Bearing Lock Nut, KM18

Manufacturer	FAG (Schaeffler)
Description	KM Series Bearing Lock Nut, 120 mm OD
Part Number	KM18
MI Item Number	02165181
Distributor	Motion Industries
Motion Internal Description	KM 18
E-Shop link	https://motionindustries.com/products/sku/02165181
Material	Steel
Face Diameter	108 mm

Lock Nut Type	For Lock Washer
Lock Washer or Locking Device Part Number	MB18
Outside Diameter	120 mm
Overall Nut Width	16 mm
Series	KM
Slot Depth	4 mm
Slot Width	10 mm
Thread Size	M90x2 mm;M90x2 mm
Weight	1.25 lbs

CAD models

Buy now

Product selection

Index	Selector	MI Item Number	Description	Material	Face Diameter	Lock Nut Type	Lock Washer or Locking Device Part Number	Outside Diameter	Overall Nut Width	Series	Slot Depth	Slot Width	Thread Size	Weight
1	1	02165181	KM Series Bearing Lock Nut, 120 mm OD	Steel	108 mm	For Lock Washer	MB18	120 mm	16 mm	KM	4 mm	10 mm	M90x2 mm;M90x2 mm	1.25 lbs
