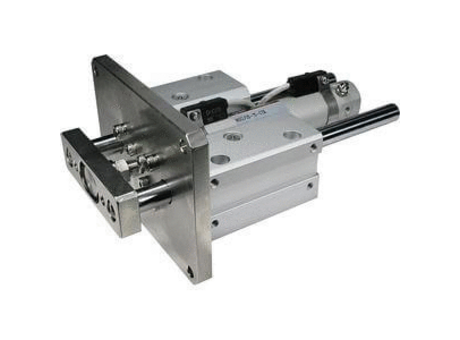

Dual Rod Compact, MGCMB40-100-R

Manufacturer	SMC
Description	Dual Rod Compact40 mm Bore Dia, Basic Mounting Type, 1/8 BSPT Port Size
Manufacturer Part Number	MGCMB40-100-R
MI Item Number	04566877
Distributor	Motion
Motion Internal Description	MGCMB40-100-R
E-Shop link	https://motion.com/products/sku/04566877
Product Page	https://motion.com/products/sku/04566877
Weight	13.29 lbs
Operating Pressure Range	+0.15 to +1 Mpa
Operating Temperature Range	-10 to +60 °C
Overall Length	288 mm
Standards Met	JIS
Port Gender	Female
Overall Width	160 mm
Overall Height	70 mm
Port Size	1/8 BSPT

Proof Pressure	+1.5 Mpa
Port Thread Standard	BSPT
Mounting Type	Basic
Maximum Operating Pressure	+1 Mpa2
Minimum Operating Pressure	+0.15 Mpa
Bore Diameter	40 mm
Piston Action	Double-Acting
Rod Type	Single Rod
Cushion Type	Air Cushion
Pull Force at 100 psi	742 N
Push Force at 100 psi	882 N
Rod Gender	Female
Rod Size	16 mm
Stroke Length	100 mm
Bearings	Slide Bearing
Guided Cylinder Type	Dual Rod Compact
