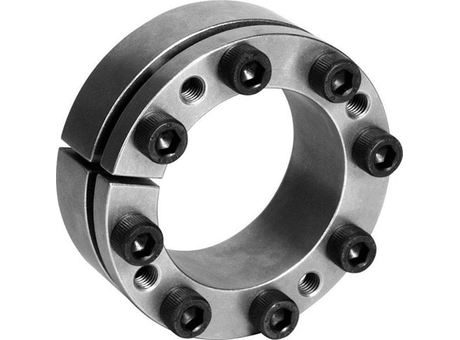

Cap Screw Clamping Keyless Bushing C123M-55x85

Manufacturer	Climax Metal Products
Description	Cap Screw Clamping Keyless Bushing, C123 Series, 55 mm ID, 85 mm OD, 1.3580 in LTB
Manufacturer Part Number	C123M-55x85
MI Item Number	02771809
Distributor	Motion
Motion Internal Description	C123M-55X85 KEYLESS LOCKING ASSY
E-Shop link	https://www.motion.com/products/sku/02771809
Product Page	https://www.motion.com/products/sku/02771809
Weight	1.80 lbs
Series	C123
Material	Steel
Flange Type	No Flange
Mounting Type	Internal
Outside Diameter	85 mm

Overall Length	1.673 in
Length Through Bore	1.3580 in
Maximum Transmitted Torque	1671 ft·lb
Inside Diameter	55 mm
Harmonization Code	8483.60.8000
Number of Locking Screws	8
Finish / Coating	Uncoated
Component Bore Diameter	3.3465 in
Hub Contact Pressure	+18644 psi
Keyless Bushing Type	Cap Screw Clamping
Maximum Transmitted Thrust	18521 lbf
Mountable Length	1.043 in
Number of Tapers	1
Shaft Contact Pressure	+28814 psi

CAD models

Buy now

Product selection

Index	Selector	MI Item Number	Motion Internal Description	Description	Weight	Series	Material	Flange Type	Mounting Type	Outside Diameter	Overall Length	Length Through Bore	Maximum Transmitted Torque	Inside Diameter	Harmonization Code	Number of Locking Screws	Finish / Coating	Component Bore Diameter	Hub Contact Pressure	Keyless Bushing Type	Maximum Transmitted Thrust	Mountable Length	Number of Tapers	Shaft Contact Pressure
1	1	02771809	C123M-55X85 KEYLESS LOCKING ASSY	Cap Screw Clamping Keyless Bushing, C123 Series, 55 mm ID, 85 mm OD, 1.3580 in LTB	1.80 lbs	C123	Steel	No Flange	Internal	85 mm	1.673 in	1.3580 in	1671 ft·lb	55 mm	8483.60.8000	8	Uncoated	3.3465 in	+18644 psi	Cap Screw Clamping	18521 lbf	1.043 in	1	+28814 psi
