By MEA Metal Applications GmbH

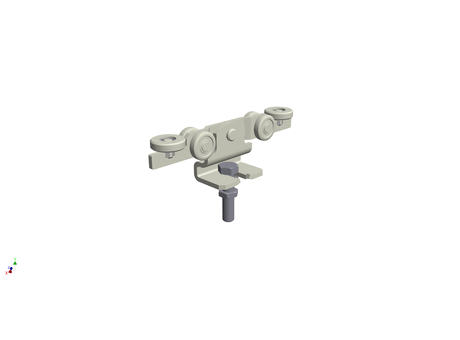

Double roller with lateral guidance

Manufacturer	MEA Metal Applications GmbH
Description	Double roller with lateral guidance
Part Number	T010337910

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	size	loading capacity per double roller	gate weight per leaf/hand-operated	gate weight per leaf/electrically operated

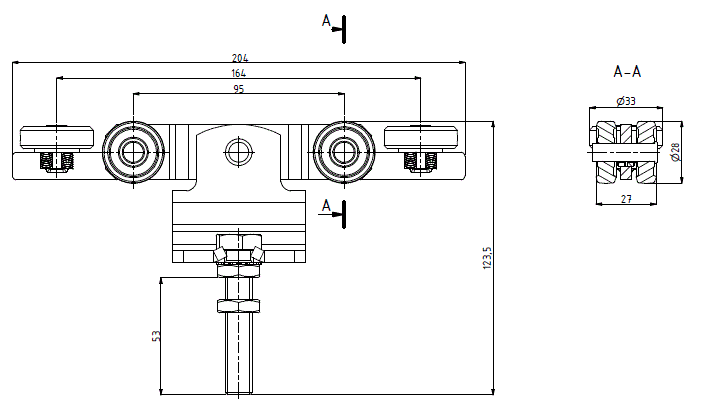

1	1	T010337910	Double roller with lateral guidance	Gr. 1	100 kg	200 kg	100 kg

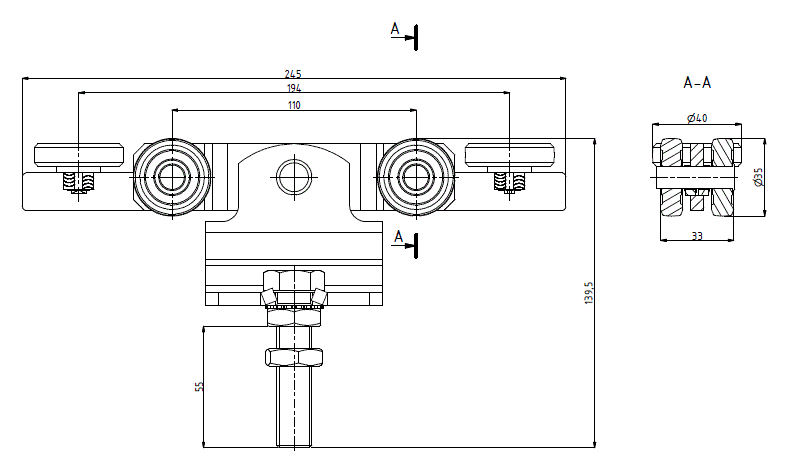

2	2	T010337912	Double roller with lateral guidance	Gr. 2	200 kg	400 kg	200 kg

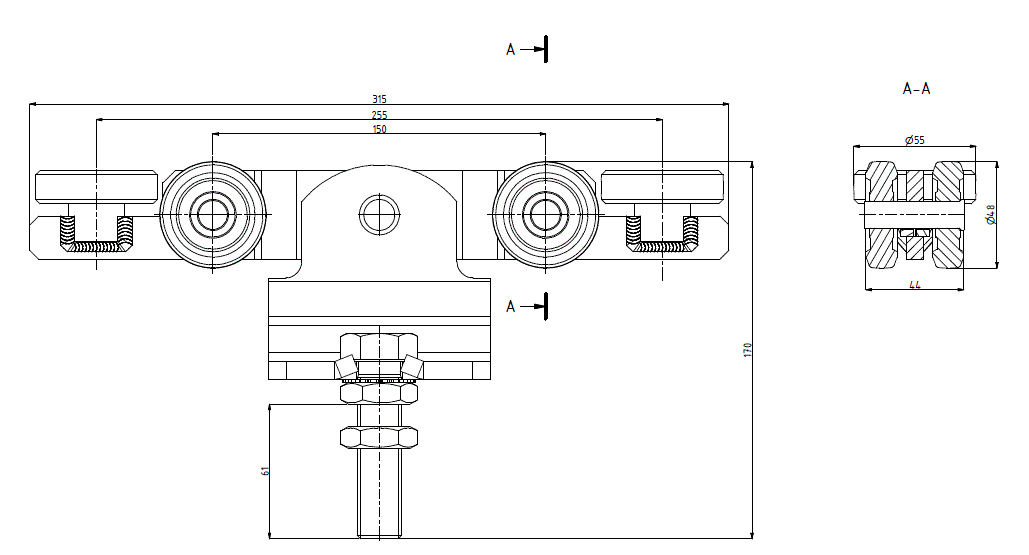

3	3	T010337914	Double roller with lateral guidance	Gr. 3	300 kg	600 kg	300 kg

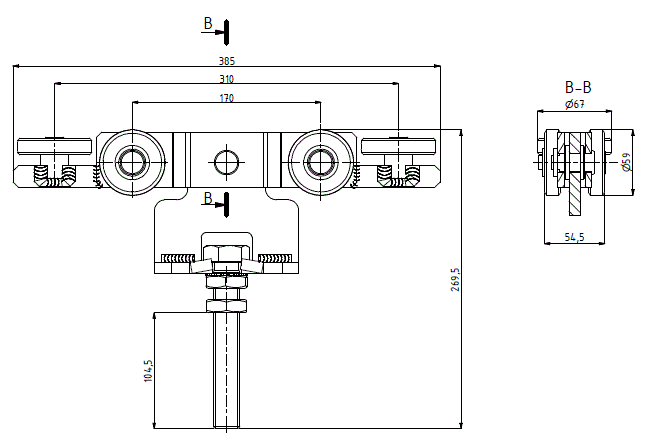

4	4	T010337916	Double roller with lateral guidance	Gr. 4	600 kg	1200 kg	600 kg
