By MEA Metal Applications GmbH

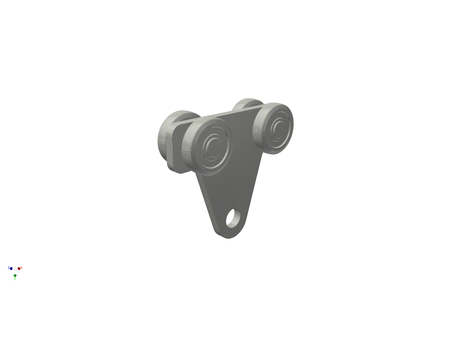

Double roller for suspension attachment

Manufacturer	MEA Metal Applications GmbH
Description	Double roller for suspension attachment
Part Number	T010336831

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	size	loading capacity per double roller	gate weight per leaf/hand-operated	gate weight per leaf/electrically operated

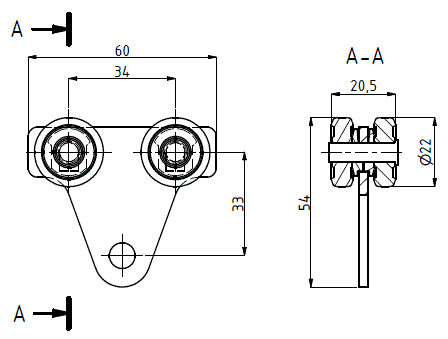

1	1	T010336831	Double roller for suspension attachment	Gr. 0	45 kg	90 kg

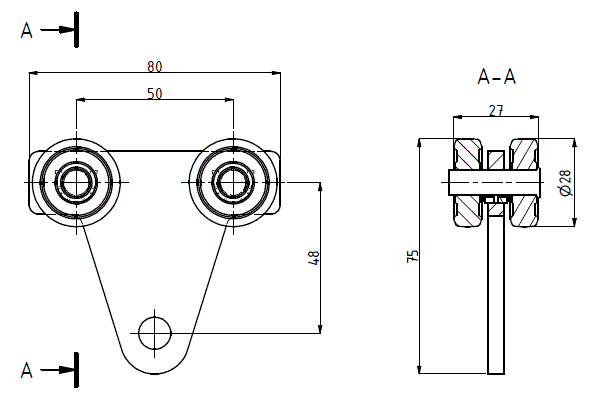

2	2	T010336834	Double roller for suspension attachment	Gr. 1	100 kg	200 kg	100 kg

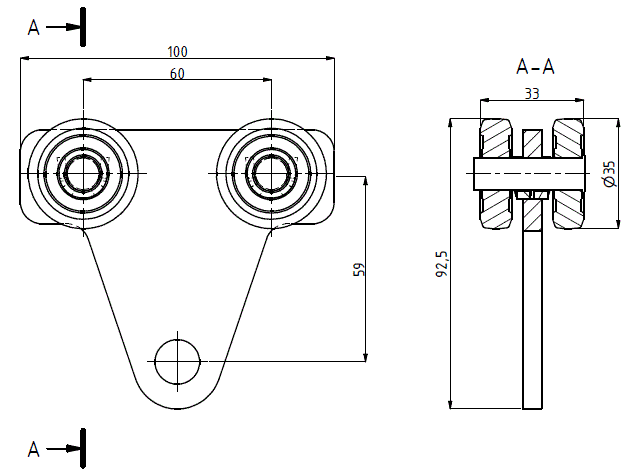

3	3	T010336837	Double roller for suspension attachment	Gr. 2	200 kg	400 kg	200 kg

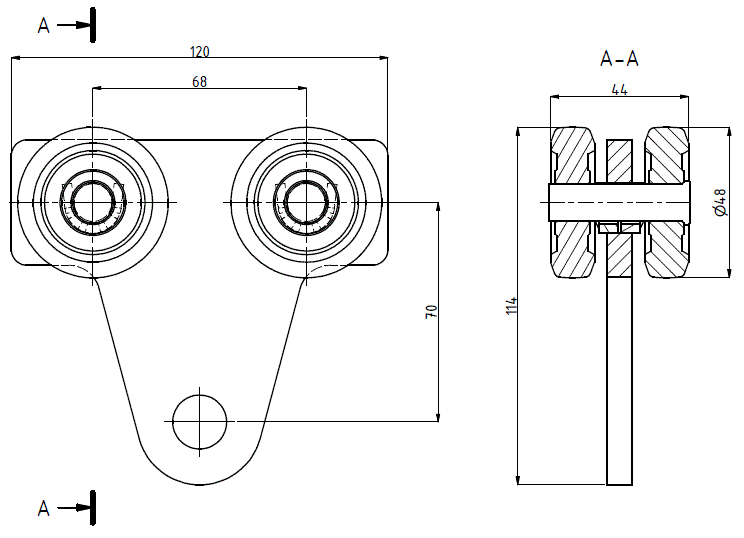

4	4	T010336839	Double roller for suspension attachment	Gr. 3	300 kg	600 kg	300 kg

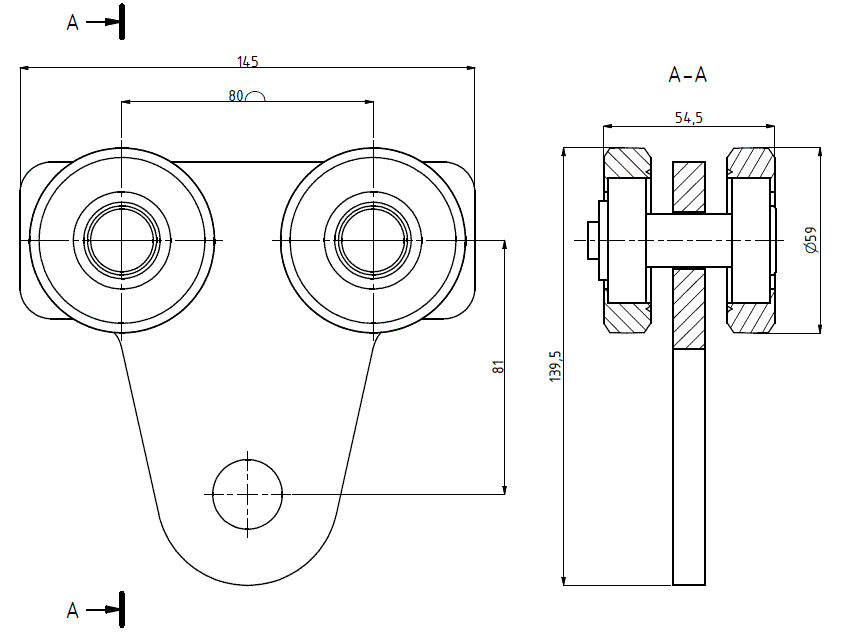

5	5	T010336841	Double roller for suspension attachment	Gr. 4	600 kg	1200 kg	600 kg

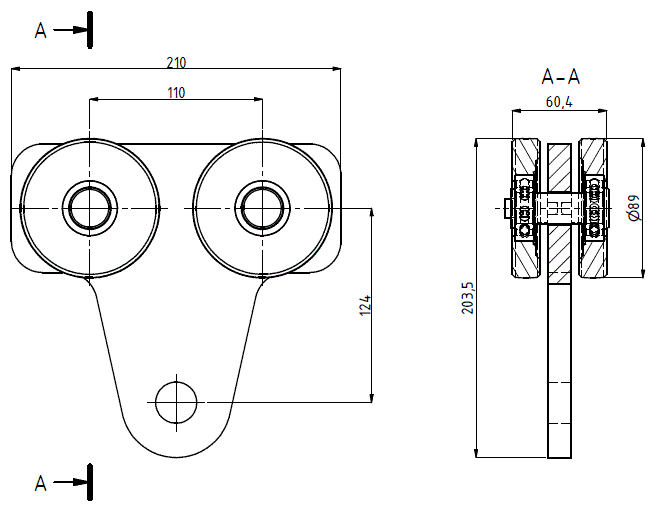

6	6	T010336843	Double roller for suspension attachment	Gr. 5	1000 kg	2000 kg	1000 kg
