By MEA Metal Applications GmbH

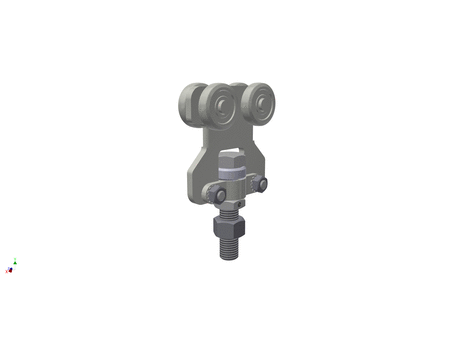

Double roller, central rotation

Manufacturer	MEA Metal Applications GmbH
Description	Double roller, central rotation
Part Number	T010336922

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	size	loading capacity per double roller	gate weight per leaf/hand-operated	gate weight per leaf/electrically operated

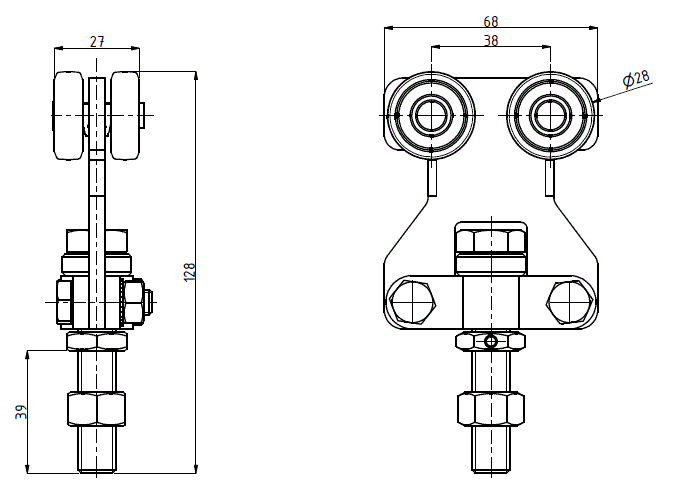

1	1	T010336922	Double roller, central rotation	Gr. 1	100 kg	200 kg	100 kg

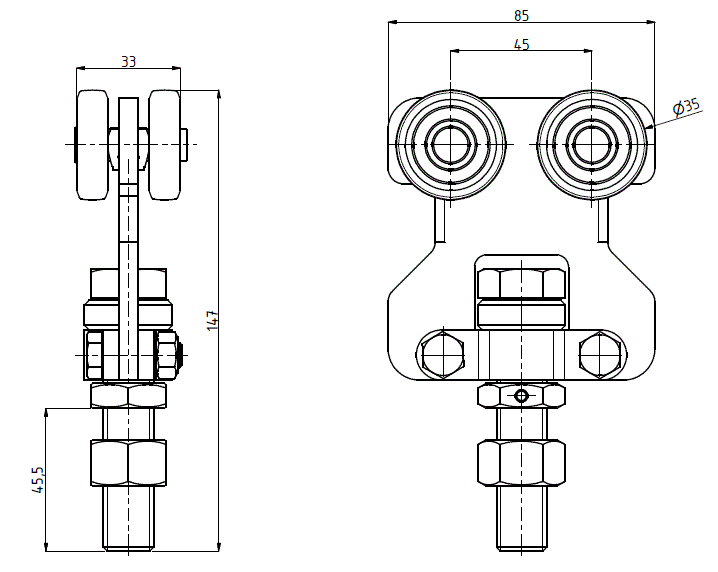

2	2	T010336932	Double roller, central rotation	Gr. 2	200 kg	400 kg	200 kg

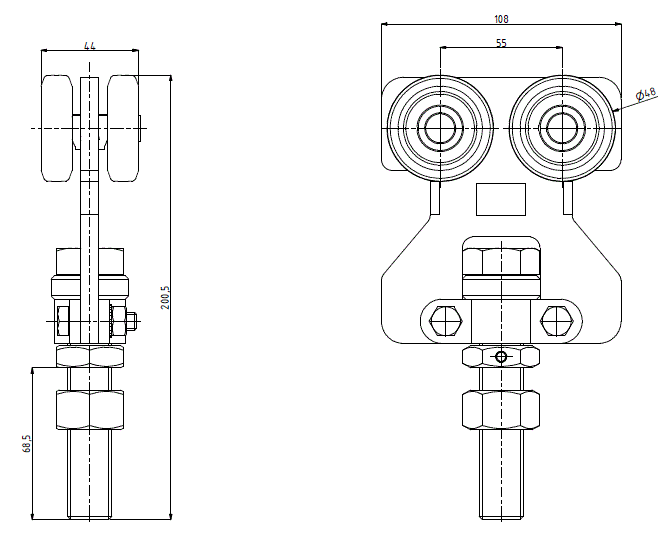

3	3	T010336942	Double roller, central rotation	Gr. 3	300 kg	600 kg	300 kg

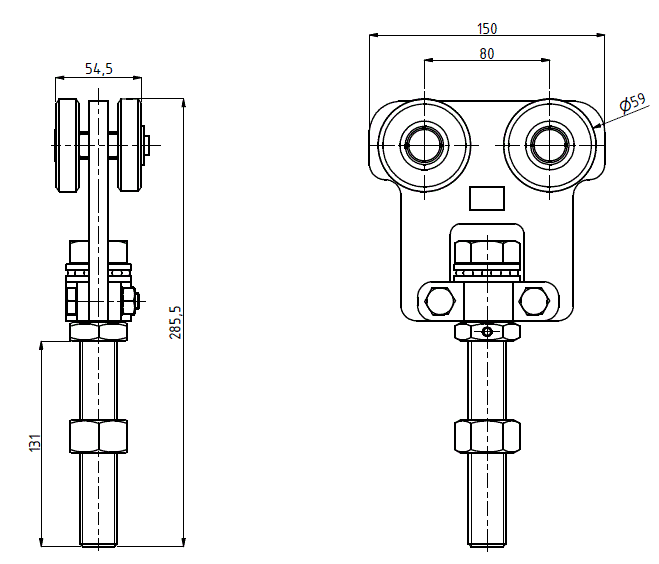

4	4	T010336952	Double roller, central rotation	Gr. 4	600 kg	1200 kg	600 kg
