By MEA Metal Applications GmbH

Bottom roller, single bearing

Manufacturer	MEA Metal Applications GmbH
Description	Bottom roller, single bearing
Part Number	T010337670

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	roller Ø in mm	track width max. in mm	loading capacity per roller

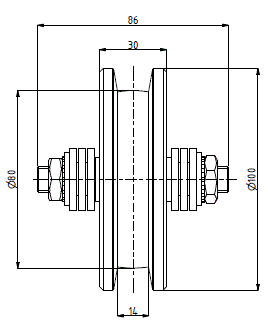

1	1	T010337670	Bottom roller, single bearing	100	14	200 kg

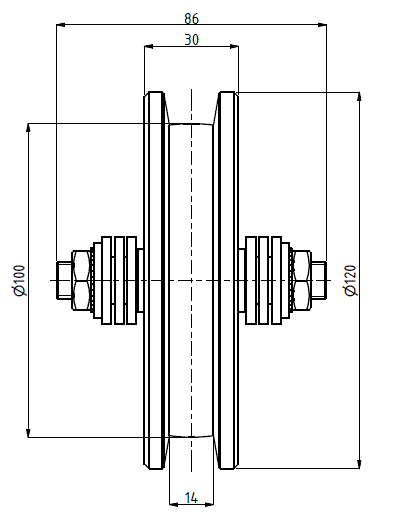

2	2	T010337672	Bottom roller, single bearing	120	14	270 kg

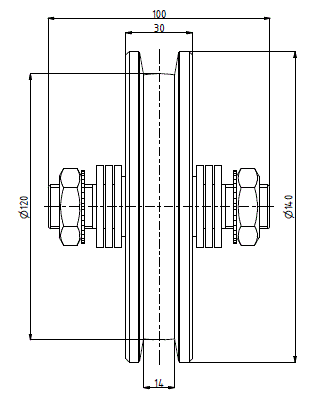

3	3	T010337674	Bottom roller, single bearing	140	14	400 kg

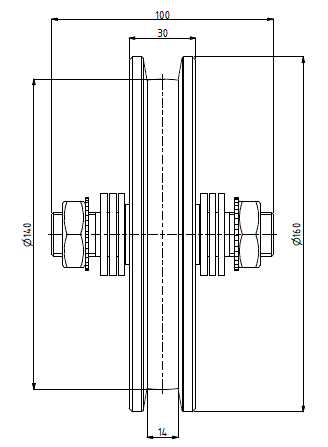

4	4	T010337676	Bottom roller, single bearing	160	14	500 kg
