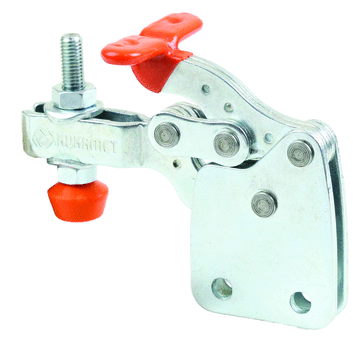

252 Compact Vertical Toggle Clamp

Vertical Compact Vertical Toggle Clamp

Manufacturer	KUKAMET
Description	252-2 Vertical Compact Vertical Toggle Clamp
Part Number	252-2
Excerting Force (N)	470
Angle (°)	90
Holding Capacity (N)	700
Part_Number_ProductPage_URL	https://kukamet.com.tr/urunler/252
Weight (g)	68

CAD models

Request for quotation

Index	Selector	Part Number	Description	Excerting Force (N)	Angle (°)	Holding Capacity (N)	Weight (g)
1	1	252-2	252-2 Vertical Compact Vertical Toggle Clamp	470	90	700	68
2	2	252-3	252-3 Vertical Compact Vertical Toggle Clamp	1400	90	1625	261
3	3	252-4	252-4 Vertical Compact Vertical Toggle Clamp	2000	90	3370	708

Toggle clamp is available in all black.

Stainless rivets (304 quality) and heat treated bushing.

High- quality steel sheet parts are galvanized.

Dimensions and technical data are subject to change without notice.
